Fibre Patch Lead 15 Metre Singlemode | LSZH Jacket | Duplex LC Connectors | Yellow by Cabac
The MSS Fibre SCA - LC Singlemode 15 Metre Yellow LSZH 2mm Duplex Fibre Patch Lead by Cabac is a high-performance fibre optic patch lead designed for data centres and telecommunications, featuring LSZH jacket and duplex LC connectors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

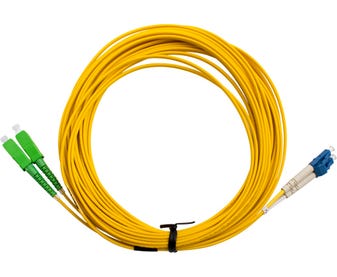

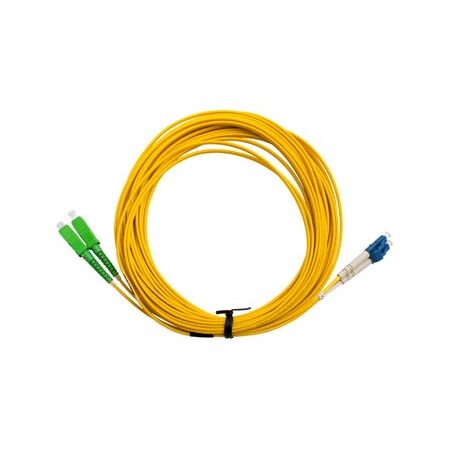

Product Name/Title: MSS Fibre SCA - LC Singlemode 15 Metre Yellow LSZH 2mm Duplex Fibre Patch Lead
Brand: Cabac
SKU: DSCALC15M-SM
Alternatively Known As: Fibre Optic Patch Lead, Singlemode Fibre Patch Cable, Duplex LC Fibre Cable, LSZH Fibre Patch Lead, 15m Fibre Patch Lead
Technical Specifications
- Fibre Type: Singlemode
- Length: 15 metres
- Jacket: 2mm Yellow LSZH
- Connector Type: Duplex Clip on LC connectors
- Polarity: A-to-B
- Performance Tested to IEC 11801 and ANSI/TIA 568-3
- Mating Cycles: Up to 500 (IEC 61300-2-2)
- Standards Compliance: AS/CA S008, IEC 11801, 14763.36, ANSI/TIA 568-3, 61300-3, RoHS, REACH
- Dimensions (H x L x W): 2mm x 15000mm x 2mm
- Weight: 0.1 kg
Key Features
- Performance tested to numerous IEC standards to ensure performance exceeds test requirements
- Range of connector types
- Duplex Clip on LC connectors
- LSZH Jacket in various colours
- Available in OM1, OM3, OM4 and Singlemode
- Polarity method "A-to-B" used in all standard fibre patch leads with LC duplex clips
- Up to 500 mating cycles (IEC 61300-2-2)
- 2mm Yellow LSZH sheath
Professional Installation Requirements
- Installation by trained fibre optic technicians is recommended to ensure optimal performance and compliance with standards.
Applications
- Data centres
- Telecommunications rooms
- Fibre equipment patching
- Premise cabling
Standards & Compliance
- AS/CA S008
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
- RoHS and REACH compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for details.
Available Now
The MSS Fibre SCA - LC Singlemode 15 Metre Yellow LSZH 2mm Duplex Fibre Patch Lead is available for immediate purchase, ideal for data centre and telecommunications applications.
