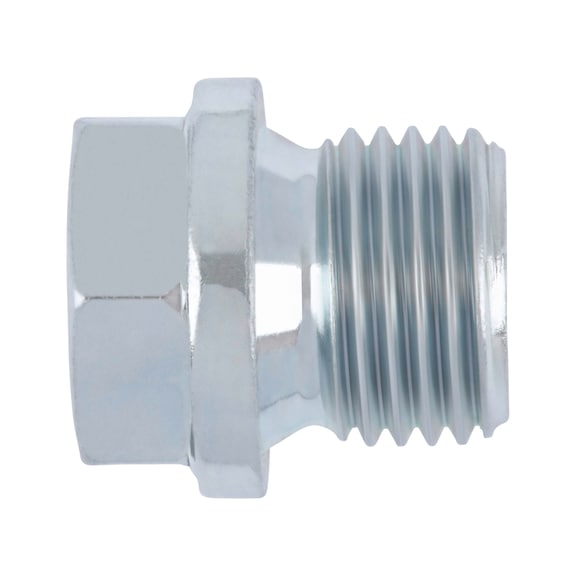

Fine Pitch Oil Drain Plug M18 x 1.5 | Hex Head with Collar | Zinc Plated | by Wurth
The Fine Pitch Oil Drain Plug M18 x 1.5 is designed for automotive and machinery maintenance, featuring a hexagonal head with collar for secure fitting. Made from durable zinc-plated steel, this plug is RoHS-compliant and ideal for replacing OEM plugs with matching thread patterns, ensuring a reliable seal and extended product life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fine Pitch Oil Drain Plug M18 x 1.5 | Hex Head with Collar | Zinc Plated | by Wurth
Brand: Wurth
SKU: 2411815
Alternatively Known As: Oil drain plug, Fine pitch drain plug, Hex head oil plug, M18 oil plug
Technical Specifications
- Thread type x nominal diameter x pitch (d1): M18 x 1.5
- Length (l1): 24 mm
- Head diameter (d2): 23 mm
- Head height (k1): 12 mm
- Standards: DIN 910
- Material: Steel
- Surface: Zinc plated
- RoHS-compliant: Yes
- Head type: Hexagon head
- Head details: With collar
- Drive type: Outer hexagon
- External drive (s1): WS17
- Thread type: Metric thread
- Pitch: 1.5 mm
- Thread form: Fine pitch thread
- Thread length (metric thread): 12 mm
- Design: Standard design
- Product class: B
- Dimensions (H x L x W): 12mm x 24mm x 23mm
- Weight: 0.1 kg
Key Features
- Fine pitch oil drain plugs with collar and hexagonal head
- Parallel threads
- Fine pitch profile on all plugs
- Can be substituted for OEM plugs with same thread pattern
Professional Installation Requirements
- Installation by a qualified mechanic or technician is recommended to ensure proper fit and sealing.
Applications
- Automotive oil drain plug replacement
- Machinery maintenance requiring fine pitch oil drain plugs
- OEM plug substitution with matching thread pattern
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth's warranty policy for details.
Available Now
The Wurth Fine Pitch Oil Drain Plug M18 x 1.5 is available now for immediate purchase. Ideal for automotive and machinery maintenance requiring reliable oil drain plugs.
