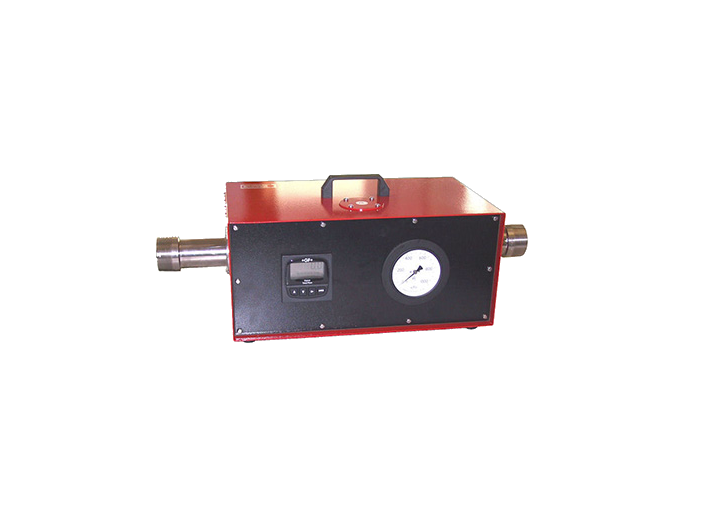

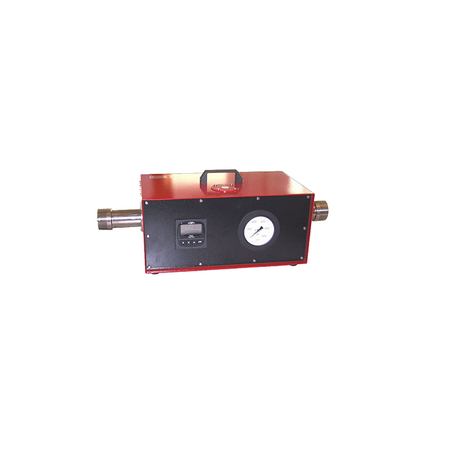

Fire Hydrant Tester | 0-1800 LPM Flow Range | Stainless Steel Tubes & Calibration Certificate | Firebox
Fire hydrant tester with a flow range of 0-1800 LPM and stainless steel flow tubes—ideal for verifying water pressure and flow at fire hydrant service points. Built for fire safety professionals, it includes a calibration certificate for accurate testing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fire Hydrant Tester | 0-1800 LPM Flow Range | Stainless Steel Tubes & Calibration Certificate | Firebox
Brand: Firebox
SKU: FLOWTESTER1
Alternatively Known As: Fire Hydrant Flow Tester, Fire Hydrant Pressure Tester, Ambit Fire Hydrant Flow Meter
Technical Specifications
- Flowmeter calibration certificate included
- Flow tubes: 316 stainless steel with BSPT male connections
- Flow range 2 1/2” tube: 0-1800 LPM
- Flow range 3/4” tube: 0-180 LPM
- Pressure gauge range: 0-1000 kPa or 0-1600 kPa
- Accuracy on 2 1/2” line: +/- 2% F.S.D. up to 1200 LPM, 3% from 1200 to 1800 LPM
- Accuracy on 3/4” line: +/- 2% F.S.D. up to 120 LPM, 3% from 120 to 180 LPM
- Pressure gauge accuracy: +/- 1% F.S.D.
- Cabinet: Powder coated aluminium
- Weight approx.: 10 kg
- Dimensions (H x L x W): 230mm x 510mm x 310mm
- Weight: 10 kg
Key Features
- Mains power not required
- Flowmeters can read in LPM or LPS
- Flowmeters include totaliser
- Cabinet manufactured in powder coated aluminium
- Flow tubes made of 316 stainless steel with BSPT male connections
- Flow range on 2 1/2” tube: 0 to 1800 LPM
- Flow range on 3/4” tube: 0 to 180 LPM
- Pressure gauge range options: 0 to 1000 kPa or 0 to 1600 kPa
- High accuracy flow measurement with +/- 2% to 3% F.S.D. depending on flow range
- Pressure gauge accuracy of +/- 1% F.S.D.
- Includes flowmeter calibration certificate
Professional Installation Requirements
- No mains power required; however, professional training recommended for accurate flow and pressure testing.
Applications
- Verification of water pressure and flow at fire hydrant service points
- Flow testing for fire safety compliance and maintenance
Standards & Compliance
- AS/NZS 2419 – Fire Hydrant Systems
Environmental Benefits
- No mains power required, reducing energy consumption during testing
- Durable materials extend product life and reduce waste
Warranty Information
Warranty details available upon request from Firebox; includes service and repair facilities.
Available Now
The Ambit PF-1D Fire Hydrant Tester by Firebox is available for immediate purchase, ideal for fire safety professionals and maintenance teams.
