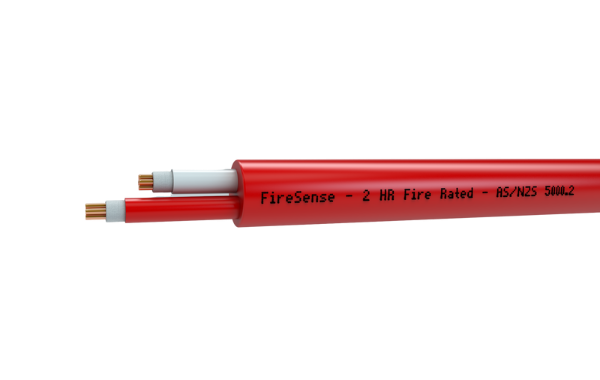

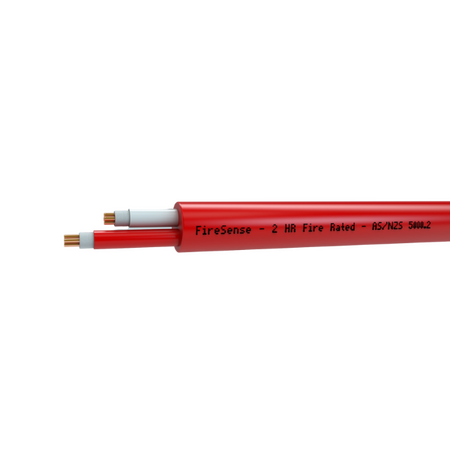

Fire Rated Cable 1.50mm 2 Core | 450/750V | PVC Free & 2HR Fire Rated | 250m Roll by Firebox
Fire rated cable with 1.50mm diameter and 2 core construction—ideal for fire alarm and emergency systems. Built for essential services, it features a 450/750V voltage rating and is PVC free, ensuring low smoke emissions during fire incidents.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fire Rated Cable 1.50mm 2 Core | 450/750V | PVC Free & 2HR Fire Rated | 250m Roll by Firebox
Brand: Firebox
SKU: FR-1.50-2C-250
Alternatively Known As: Fire Rated Cable 1.5mm 2 Core, LSZH Fire Alarm Cable, ActivFire Fire Rated Cable, FireSense 2HR Cable
Technical Specifications
- Voltage Rating: 450/750V
- Temperature Rating: 110°C continuous operation
- Fire Rating: 2HR Fire Rated WS52W
- Cable Construction: AS/NZS 5000.2
- Fire & Mechanical Protection: AS/NZS 3013, AS/NZS 4507 (RHE-3)
- ACMA Compliance: AS/CA S008
- Markings: AS 1670:2018
- Twists per meter: 8-10
- Length: 250m roll
- Dimensions (H x L x W): 10mm x 250000mm x 10mm
- Weight: 10 kg
Key Features
- 2HR Fire Rated - WS52W
- PVC Free - Low Smoke Zero Halogen (LSZH)
- Certified by Bureau Veritas & GECA
- ActivFire certified
- RCM / Global Mark certified
- Green Building Code of Australia / Green Star compliant
- 110°C continuous operation
- 450/750V voltage rating
- Fire & Mechanical Protection compliant with AS/NZS 3013, AS/NZS 4507 (RHE-3)
- Cable Construction compliant with AS/NZS 5000.2
- ACMA Compliance with AS/CA S008
- AS 1670:2018 Markings
- 8-10 twists per meter
- Smallest diameter on the market
- Flexible, easy to strip, install & terminate
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with fire rated cable standards and local regulations to ensure compliance and safety.
Applications
- ELV applications
- Essential services including EWIS and 1668 applications
- Australian Fire Alarm systems
- EWIS (Emergency Warning and Intercommunication Systems)
- Fan Control applications
Standards & Compliance
- AS/NZS 3013 – Electrical installations – Fire resistant cables
- AS/NZS 5000.2 – Electric cables – Polymeric insulated – For working voltages up to and including 450/750 V
- AS/NZS 4507 – Fire resistant cables – Test methods and requirements
- AS/CA S008 – Requirements for customer cabling products
- AS 1670:2018 – Fire detection, warning, control and intercom systems
Environmental Benefits
- PVC Free and Low Smoke Zero Halogen (LSZH) materials reduce toxic emissions during fire incidents
- Certified by Bureau Veritas & Good Environmental Choices Australia (GECA)
- Complies with Green Building Code of Australia and Green Star requirements
Warranty Information
Warranty details available upon request from Firebox; typically includes coverage against manufacturing defects.
Available Now
The FireSense Fire Rated Cable 1.50mm 2 Core 250m Roll by Firebox is available now for immediate purchase. Ideal for essential service wiring, fire alarm, and emergency systems.
