Trade Discount 17%

Fire Rated Cable 1.50mm 4 Core | 250m Roll | PVC Free & 2HR Fire Rated by Firebox

BRAND: Firebox
SKU: FR-1.50-4C-250
$2,641.30 List price: $3,196.90
Free pick up (over 1 meter)
For delivery quote message
30 Days Return Delivery Options

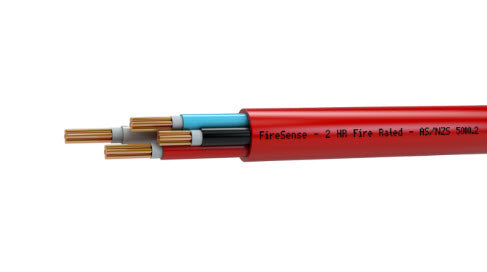

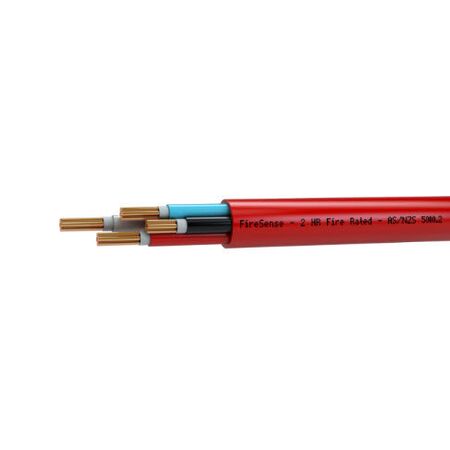

Fire rated cable with 1.50mm thickness and 4 cores—ideal for fire alarm systems and emergency applications. Built for safety and compliance, featuring PVC free materials and a 2HR fire rating for reliable performance.

Product Name/Title: Fire Rated Cable 1.50mm 4 Core | 250m Roll | PVC Free & 2HR Fire Rated by Firebox

Brand: Firebox

SKU: FR-1.50-4C-250

Alternatively Known As: Fire Rated Cable 1.5mm 4 Core, LSZH Fire Alarm Cable, ActivFire Fire Rated Cable, FireSense 2HR Fire Rated Cable

Technical Specifications
  • Roll length: 250m
  • Voltage rating: 450/750V
  • Continuous operation temperature: 110°C
  • Fire rating: 2HR Fire Rated – WS52W
  • Cable construction standard: AS/NZS 5000.2
  • Fire and mechanical protection standards: AS/NZS 3013, AS/NZS 4507 (RHE-3)
  • ACMA Compliance: AS/CA S008
  • Markings: AS 1670:2018
  • Twists per meter: 8-10
  • Dimensions (H x L x W): 10mm x 250000mm x 10mm
  • Weight: 10 kg
Key Features
  • 2HR Fire Rated – WS52W
  • PVC Free - Low Smoke Zero Halogen (LSZH)
  • ActivFire certified
  • RCM / Global Mark certified
  • Green Building Code of Australia / Green Star compliant
  • 110°C continuous operation
  • 450/750V voltage rating
  • Fire & Mechanical Protection compliant with AS/NZS 3013, AS/NZS 4507 (RHE-3)
  • Cable Construction compliant with AS/NZS 5000.2
  • ACMA Compliance - AS/CA S008
  • AS 1670:2018 Markings
  • 8-10 twists per meter
  • Small outside diameter
  • Flexible, easy to strip, install & terminate
Professional Installation Requirements
  • Installation should be performed by qualified professionals familiar with fire rated cable standards and local regulations to ensure compliance and safety.
Applications
  • Fire Alarm Systems
  • Emergency Warning and Intercommunication Systems (EWIS)
  • Fan Control Applications
  • Switching Applications requiring fire rated cables
Standards & Compliance
  • AS/NZS 3013 – Fire and Mechanical Protection for Cables
  • AS/NZS 5000.2 – Cable Construction
  • AS/NZS 4507 – Fire Resistant Cables (RHE-3)
  • AS/CA S008 – Electromagnetic Compatibility
  • AS 1670:2018 – Fire Detection, Warning, Control and Intercom Systems
Environmental Benefits
  • PVC Free and Low Smoke Zero Halogen (LSZH) materials reduce toxic emissions during fire.
  • Certified by Bureau Veritas and Good Environmental Choices Australia (GECA).
  • Complies with Green Building Code of Australia and Green Star requirements.
Warranty Information

Warranty details available upon request from Firebox.

Available Now

FireSense Fire Rated Cable 1.50mm 4 Core 250m Roll is available for immediate purchase, ideal for fire alarm and emergency system installations.
