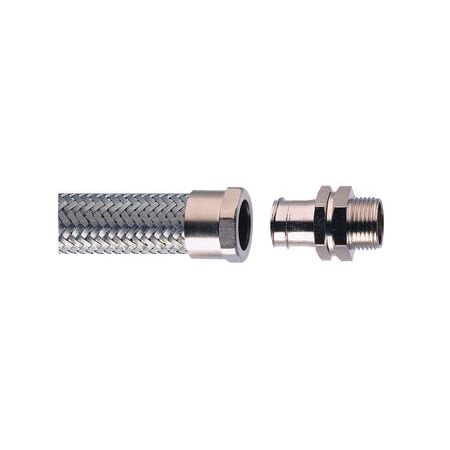

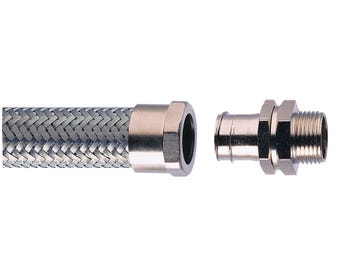

Fitting SB Straight Swivel External Thread M32 | Nickel Plated Brass | IP40 Rated | -50ºC to +300ºC by Cabac
The Cabac Fitting SB Straight Swivel External Thread M32 is a durable nickel plated brass fitting designed for use with Adaptaflex conduits in various wiring and high-temperature applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: FITTING SB STRAIGHT SWIVEL EXTERNAL THREAD M32
Brand: Cabac
SKU: SB32/M32/B
Alternatively Known As: Straight Swivel Threaded Fitting M32, External Thread Conduit Fitting, Adaptaflex Conduit Fitting
Technical Specifications
- Material: Nickel plated brass
- Thread Type: External male thread M32
- Temperature Range: Static -50ºC to +300ºC, Moving -45ºC to +250ºC
- IP Rating: IP40
- Compatible with Adaptaflex Type SS, S, SSB, STC & SB conduits
- Locknut not included
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.1 kg
Key Features
- Straight fitting with swivel external male thread
- Nickel plated brass construction
- Temperature range: Static Applications -50ºC to +300ºC, Moving Applications -45ºC to +250ºC
- IP40 rated for protection
Professional Installation Requirements
- Installation by a qualified electrician or professional experienced with conduit fittings is recommended to ensure secure and compliant connections.
Applications
- Lighting and cable track installations
- Under-floor wiring
- Access flooring
- High-temperature installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- Nickel plating enhances corrosion resistance, extending product life
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Cabac Fitting SB Straight Swivel External Thread M32 is available now for immediate purchase. Ideal for electrical conduit installations requiring durable and temperature-resistant fittings.
