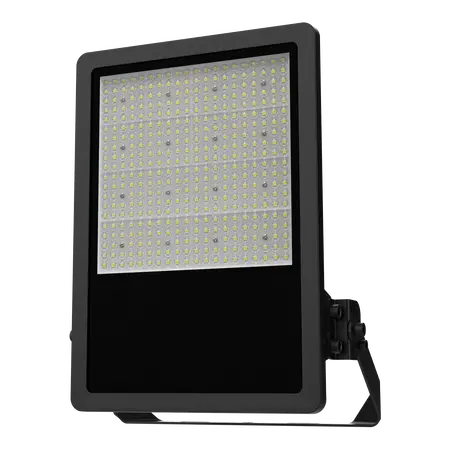

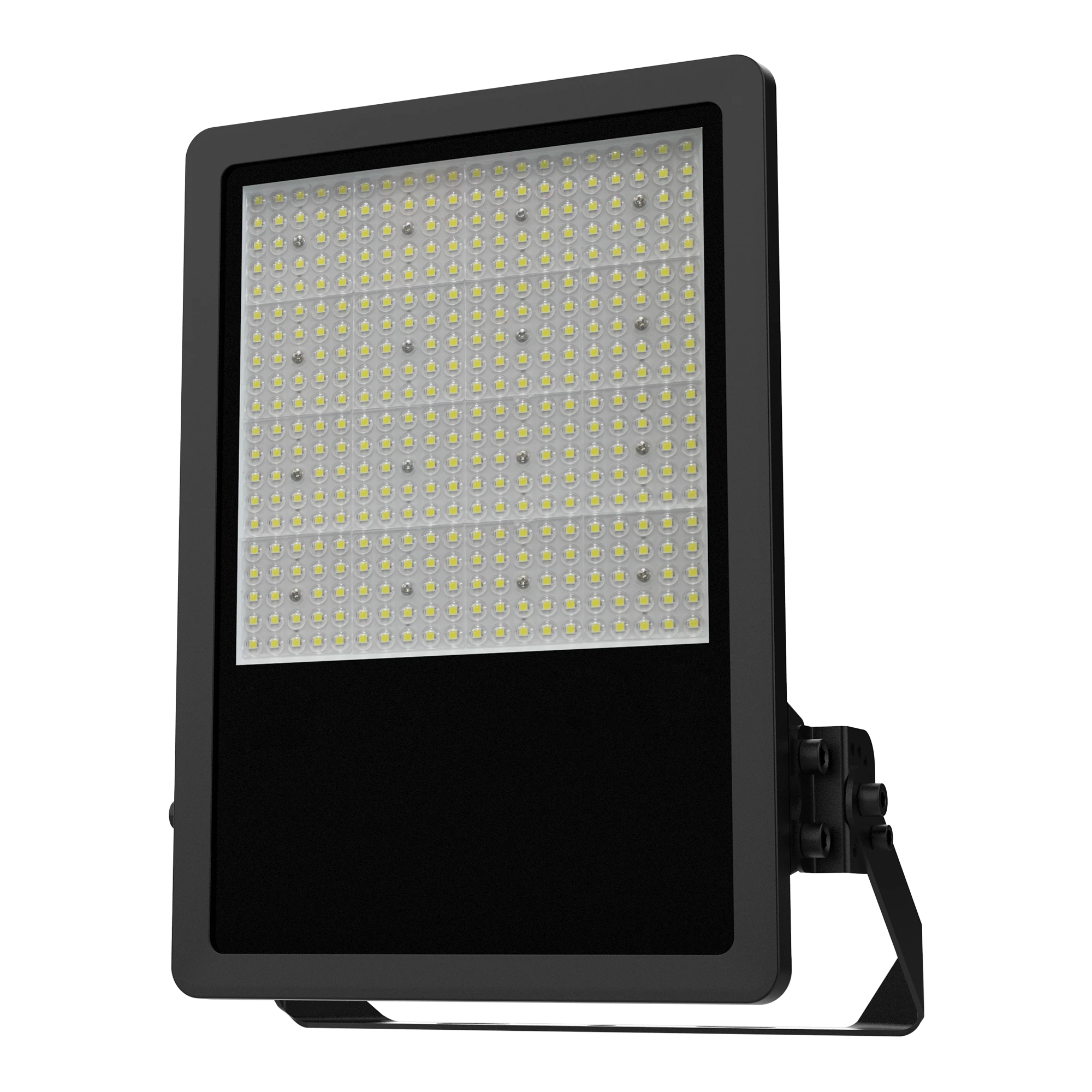

Flare LED Floodlight 120/160/200W 4000K TENNIS Black Domus
Domus Flare commercial LED floodlight, 120/160/200W selectable, 4000K, TENNIS beam, daylight sensor, fly lead and plug, black.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Flare-200 LED Floodlight, Commercial LED Sports Floodlight, Tennis Court LED Floodlight
Technical Specifications
- Selectable Wattage: 120W / 160W / 200W
- Colour Temperature: 4000K
- Lumen Output: 17,060lm at 120W / 22,417.4lm at 160W / 27,267lm at 200W
- Beam Angle: TENNIS
- Input Voltage: 240V AC
- Sensor: Built-in daylight sensor
- Dimming: No
- Ingress Protection: IP65
- CRI: ≥80
- Construction: C5 marine-grade black powder-coated aluminium body with clear glass lens
- Connection: Supplied with 2m flex and plug
- Mounting: Adjustable mounting bracket included
- Dimensions (H x L x W): 395mm x 250mm x 100mm
- Weight: 6 kg
Key Features
- Selectable 120W, 160W and 200W power settings
- Tennis beam distribution for sports-court lighting applications
- Built-in daylight sensor for automatic operation control
- High-output LED illumination up to 27,267 lumens
- IP65 protection for outdoor commercial and industrial environments
- C5 marine-grade black powder-coated aluminium construction
- Clear glass lens for strong, uniform illumination
- Supplied with 2m flex, plug and adjustable mounting bracket
- Optional corner, signboard and post-top mounting accessories available
Professional Installation Requirements
- Installation should be completed by a licensed electrician in accordance with the manufacturer's installation instructions and applicable Australian electrical requirements. Ensure the mounting structure, aiming angle, cable routing and weather sealing are suitable for the installation environment.
Applications
- Tennis courts and sporting facilities
- Commercial and industrial outdoor areas
- Car parks and loading areas
- Warehouses and large open areas
- Architectural and façade lighting
- Recreational and community facilities
Standards & Compliance
- AS/NZS 60598.2.5 – Particular requirements for floodlights
- AS/NZS 60598.1 – General requirements and tests for luminaires
- AS/NZS 3000 – Electrical installations, for applicable installation work
Environmental Benefits
- LED technology provides high light output with lower energy consumption than traditional high-intensity floodlighting
- Built-in daylight sensor can reduce unnecessary operating hours and energy use
- Aluminium body and glass lens are recyclable materials at end of service life
- Long-life solid-state LED construction can reduce lamp replacement frequency and associated waste
Warranty Information
Domus Lighting's current commercial warranty for exterior LED floodlights is a 12-month replacement warranty, subject to licensed installation, correct use, installation in accordance with guidelines and other warranty conditions.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
