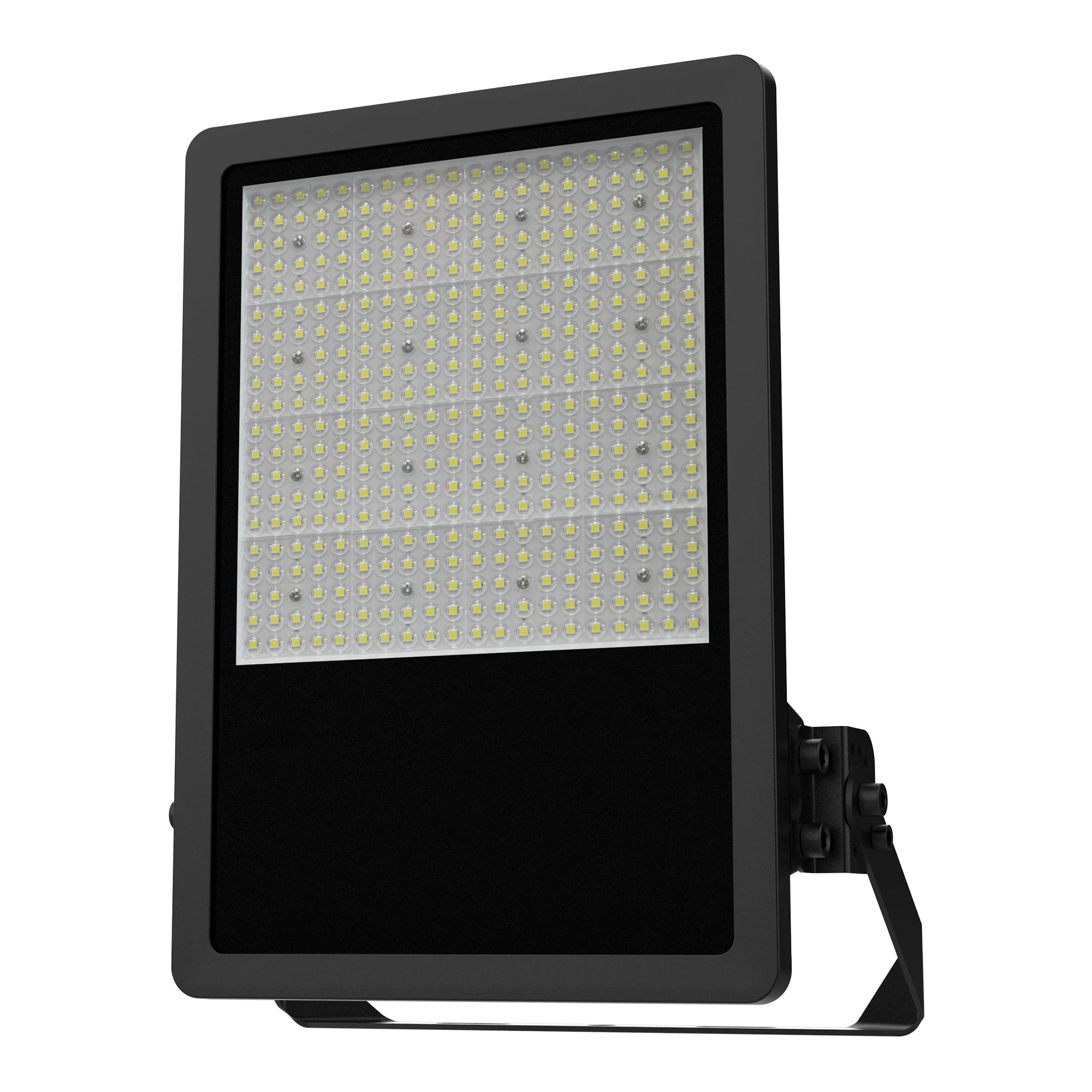

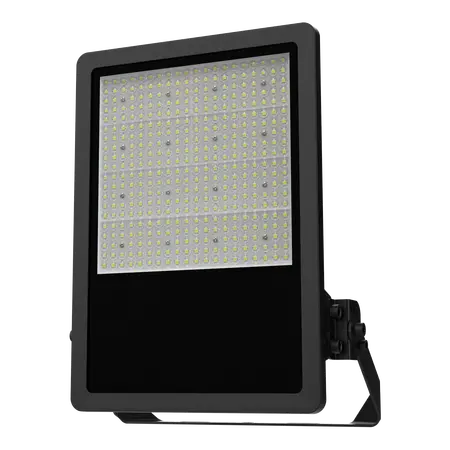

Flare LED Floodlight 120/160/200W 5000K TENNIS Black Domus
Domus Flare commercial LED floodlight, 120/160/200W selectable, 5000K, TENNIS beam, daylight sensor, fly lead and plug, black.
Sign in
Please login to continue to your account.
Alternatively Known As: Flare 200 Commercial LED Floodlight, Domus Flare Tennis Floodlight, Outdoor LED Sports Floodlight
- Selectable Wattage: 120W / 160W / 200W
- Colour Temperature: 5000K
- Beam Angle: TENNIS
- Lumen Output: 17,060 lm at 120W; 22,417.4 lm at 160W; 27,267 lm at 200W
- Input Voltage: 240V AC
- CRI: ≥80
- Dimming: No
- Sensor: Built-in daylight sensor
- Ingress Protection: IP65
- Construction: C5 marine-grade black powder-coated aluminium body
- Lens: Clear glass
- Connection: 2m flex and plug
- Mounting: Adjustable mounting bracket included
- Dimensions (H x L x W): 395mm x 250mm x 100mm
- Weight: 5.5 kg
- Selectable 120W, 160W and 200W output in one fitting
- TENNIS beam distribution for sports lighting applications
- 5000K daylight colour temperature
- Built-in daylight sensor for automatic daylight response
- IP65-rated construction for outdoor commercial use
- C5 marine-grade black powder-coated aluminium housing
- Clear glass lens for strong, even illumination
- Adjustable mounting bracket supplied
- Suitable for commercial, industrial and sporting applications
- Installation should be carried out by a licensed electrician in accordance with the manufacturer's installation instructions and AS/NZS 3000. Confirm mounting structure, cable routing and weather exposure are suitable for the installation location.
- Tennis courts and other sports facilities
- Commercial and industrial exterior lighting
- Large open-area floodlighting
- Car parks, yards and loading areas
- Architectural and façade lighting
- AS/NZS 60598.2.5:2018 is the applicable Australian/New Zealand particular standard for floodlights; product-specific compliance documentation was not located.
- AS/NZS 3000 applies to the electrical installation and wiring of the 240V fitting.
- LED technology provides efficient illumination compared with conventional high-wattage floodlighting.
- Selectable output allows the fitting to be operated at the lowest suitable wattage, reducing energy consumption.
- Built-in daylight sensing can reduce unnecessary operation during daylight hours.
- The aluminium housing is recyclable at end of service life.
- Durable outdoor construction can help reduce replacement frequency and material waste.
3-year replacement warranty for residential applications and 12-month replacement warranty for commercial applications, subject to Domus Lighting's warranty conditions. Installation by a licensed electrician and compliance with installation instructions are required.
Available through Domus Lighting and authorised Australian lighting retailers, electrical wholesalers and distributors.
