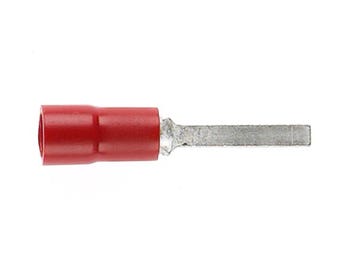

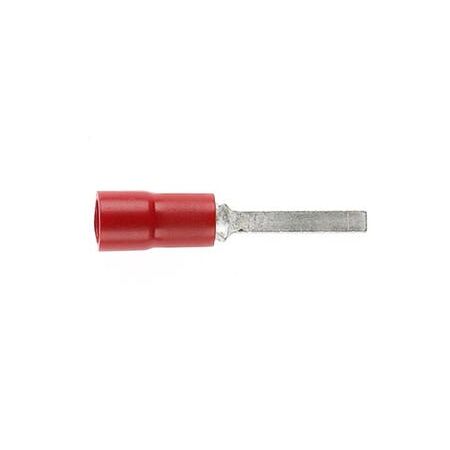

Flat Blade Terminal Pre-Insulated 1.25sqmm 2mm-Width Red Cabac 300V Flat-Blade Cabac
Flat blade terminal with 2.0mm width and pre-insulated design—ideal for electrical wiring and connectivity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Conductive Material (Quick Connect Range): Brass 30% Zinc, 70% Copper
- Tensile Strength: 580 MPa (Quick Connect Range), 200 MPa (Except Quick Connect Range)
- Ductile Rating: 6% min (Quick Connect Range), 35% min (Except Quick Connect Range)
- Final Metal State: Annealed (Quick Connect Range), Fully Annealed (Except Quick Connect Range)
- Working Temperature: Pre-Insulate -40°C to +105°C, Brass 145°C, Tin plated 160°C
- Electroplating: Tin, 99.9% Tin Content, 2.5 microns plating thickness
- Insulation Material: PVC (except nylon 6 or nylon 66 for FIQC)
- Breakdown Voltage: 1.5kV (min)
- Insulation Resistance: Above 100 meg ohms
- Working Voltage: Up to 300V AC/DC
- Total Conductivity: 99.5% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Dimensions (H x L x W): 5mm x 50mm x 20mm
- Weight: 0.1 kg
Key Features
- High quality product meeting International Standards
- Funnel entry terminals allow easy conductor entry, minimizing substandard crimps
- Long term electrical integrity
- Voltage rating 300V
- Full technical backup including QA
- Conforms to AS 3169 and AS 4437
Professional Installation Requirements
- Terminals should be crimped onto the conductor with a quality crimper designed for the specific terminal type to ensure proper installation and electrical integrity.
Applications
- Electrical wiring and connectivity in switchgear
- Contactors and terminal blocks
- General electrical installation requiring reliable terminal connections
Standards & Compliance
- AS/NZS 3123 – Industrial Plugs and Socket-Outlets
- AS 3169
- AS 4437
Environmental Benefits
- Durable design reduces waste by extending product life
- PVC insulation designed to minimize installation errors and improve safety
Warranty Information
Warranty details available upon request; product meets international quality standards.
Available Now
The Cabac Flat Blade Width 2.0mm Red pre-insulated terminal is available for immediate purchase. Ideal for electrical wiring and connectivity applications in industrial and commercial settings.
