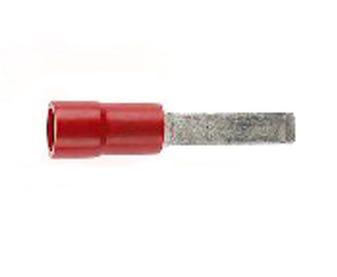

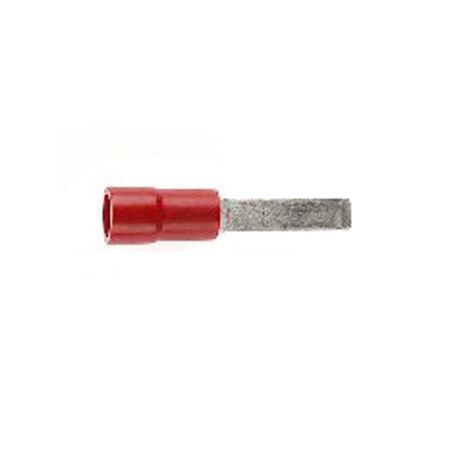

Flat Blade Terminal 3.0mm | Double Grip | Copper Sleeve | Red by Cabac

BRAND: CABAC
SKU: FB1.25-3
$8.90 List price: $10.80
+ −
30 Days Return Delivery Options
Flat blade terminal with 3.0mm width and double grip design—ideal for high vibration environments. Built for automotive and industrial use, with copper sleeve for enhanced vibration resistance and improved wire insulation.

Product Name/Title: Flat Blade Width 3.0mm Red

Brand: Cabac

SKU: FB1.25-3

Alternatively Known As: Pre-Insulated Flat Blade Terminal, Double Grip Terminal, High Vibration Terminal, Copper Sleeve Terminal, PVC Insulated Terminal

Technical Specifications
  • Pre-Insulated Flat Blade Terminal for 0.5-1.6mm cable.
  • Double grip design for enhanced stability in high vibration environments.
  • Additional copper sleeve for superior vibration resistance and improved wire insulation.
  • Copper terminal body with PVC insulation.
  • Operating temperature up to 75°C.
  • Operating voltage of 600V.
  • Manufactured to AS 3169 and AS 4437 standards.
  • RoHS and REACH compliant.
  • Dimensions (H x L x W): 30mm x 50mm x 10mm
  • Weight: 0.1 kg
Key Features
  • Double grip design specifically engineered to withstand high vibration conditions.
  • Additional copper sleeve enhances vibration resistance and improves wire insulation.
  • Constructed with a copper terminal body and PVC insulation for reliable electrical conductivity and insulation.
  • Operates within a temperature range of up to 75°C.
  • Operating voltage of 600V.
  • Manufactured in strict accordance with international standards including AS 3169 and AS 4437.
  • RoHS and REACH compliant.
Professional Installation Requirements
  • Crimp terminals onto the conductor using a quality crimper specifically designed for this terminal type to ensure a secure and long-lasting connection.
Applications
  • Automotive and Aerospace Industries: Ideal for use in vehicles, aircraft, and other transportation systems where high vibration levels are prevalent.
  • Heavy Machinery and Equipment: Suitable for connections in industrial machinery and equipment subject to constant vibrations.
  • Marine Applications: Well-suited for marine environments where vibrations from engines and machinery are common.
  • Power Distribution Systems: Reliable for use in power distribution systems where stability and durability are essential.
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • RoHS compliant, ensuring restriction of hazardous substances.
  • REACH compliant, adhering to chemical safety regulations.
Warranty Information

Warranty information is subject to supplier terms; typically includes coverage against manufacturing defects.

Available Now

The Cabac Flat Blade Width 3.0mm Red Double Grip Terminal is available now for immediate purchase. Ideal for high vibration electrical applications in automotive, aerospace, marine, and industrial machinery.
