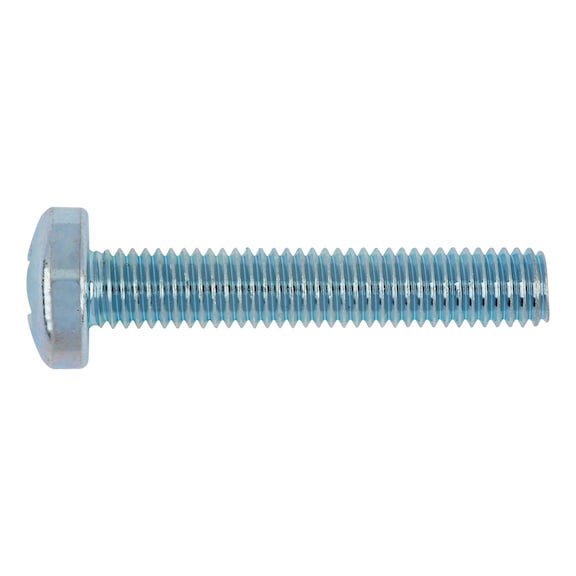

Flat Head Screw ISO 7045 | H Cross Recess | Zinc Plated Blue Passivated | M3x25 | @Pack of 50 | by Wurth
Flat head screw ISO 7045 with H cross recess and zinc plated blue passivation is perfect for general mechanical fastening and electronics assembly. Designed for strength with a property class of 4.8, this screw is RoHS-compliant and ideal for automotive repairs and industrial machinery applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flat Head Screw ISO 7045 | H Cross Recess | Zinc Plated Blue Passivated | M3x25 | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 5103003025
Alternatively Known As: Flat head cross recess screw, ISO 7045 screw, Pan head screw M3x25, Zinc plated flat head screw
Technical Specifications
- Thread type x nominal diameter: M3
- Length: 25 mm
- Head diameter: 5.6 mm
- Head height: 2.4 mm
- Standards: ISO 7045
- Material: Steel
- Property class: 4.8
- Surface: Zinc plated with blue passivation
- RoHS-compliant: Yes
- Head type: Pan head
- Drive type: Crosshead
- Internal drive: H1
- Thread type: Metric thread
- Pitch: 0.5 mm
- Thread form: Standard metric thread
- Product class: A
- Dimensions (H x L x W): 2.4mm x 25mm x 5.6mm
- Weight: 0.01 kg
Key Features
- Replaces DIN 7985 standard
- Flat head screw design
- H cross recess (H1) for secure drive
- Steel material with zinc plating and blue passivation
- Property class 4.8 for strength
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified technician or tradesperson recommended to ensure proper fastening and safety.
Applications
- General mechanical fastening
- Electronics assembly
- Automotive repairs
- Industrial machinery
- Furniture assembly
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Zinc plating provides corrosion resistance extending product life
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Flat Head Screw with H Cross Recess ISO 7045 Steel Zinc Plated M3x25 is available now for immediate purchase. Ideal for mechanical, industrial, and general fastening applications.
