Trade Discount 21%

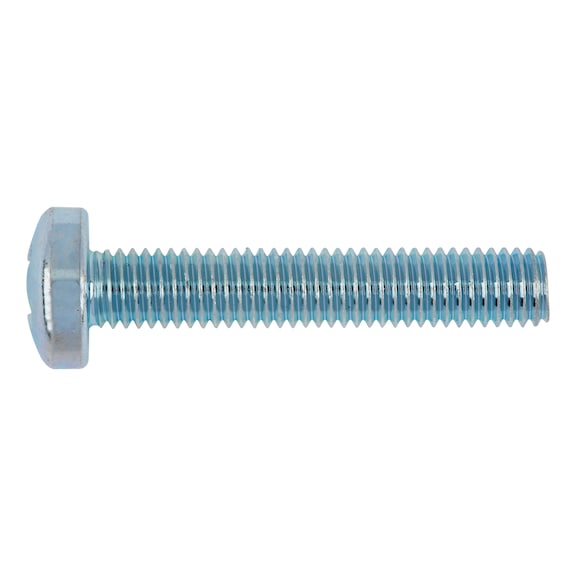

Flat Head Screw ISO 7045 | H Cross Recess | Zinc Plated Blue Passivated | M3x4 | @Pack of 50 | by Wurth
Flat head screws ISO 7045 with H cross recess and zinc plated blue passivated surface are perfect for general mechanical fastening and electronics assembly. Designed for reliable strength with a property class of 4.8, these screws are RoHS-compliant, ensuring environmental safety. Ideal for automotive components and industrial machinery, they provide secure fastening in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flat Head Screw ISO 7045 | H Cross Recess | Zinc Plated Blue Passivated | M3x4 | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 5103003004
Alternatively Known As: Flat head cross recess screw, ISO 7045 pan head screw, Zinc plated flat head screw M3, H1 cross recess screw
Technical Specifications
- Thread type x nominal diameter: M3
- Length: 4 mm
- Head diameter: 5.6 mm
- Head height: 2.4 mm
- Standards: ISO 7045
- Material: Steel
- Property class: 4.8
- Surface: Zinc plated blue passivated
- RoHS-compliant: Yes
- Head type: Flat head
- Drive type: Crosshead
- Internal drive: H1
- Thread type: Metric thread
- Pitch: 0.5 mm
- Thread form: Standard metric thread
- Product class: A
- Dimensions (H x L x W): 2.4mm x 4mm x 5.6mm
- Weight: 0.002 kg
Key Features
- Complies with ISO 7045 standard replacing DIN 7985
- Flat head design with H cross recess for secure drive
- Steel material with zinc plated blue passivated surface for corrosion resistance
- Metric thread M3 with 0.5 mm pitch
- Property class 4.8 for reliable strength
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper fastening and safety.
Applications
- General mechanical fastening
- Electronics assembly
- Automotive components
- Industrial machinery
- Furniture assembly
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating extends product life reducing waste
Warranty Information
Wurth provides warranty against manufacturing defects as per company policy.
Available Now
The Wurth Flat Head Screw with H Cross Recess ISO 7045 Steel Zinc Plated M3x4 is available for immediate purchase, ideal for mechanical, industrial, and general fastening applications.
