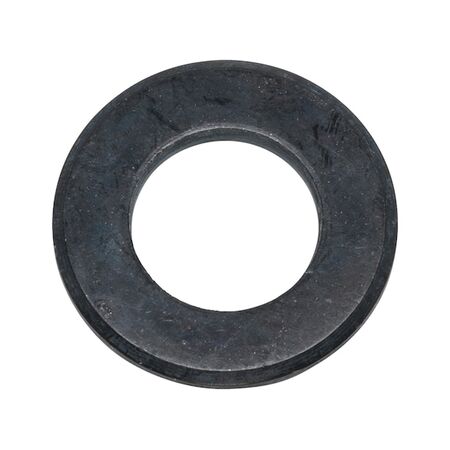

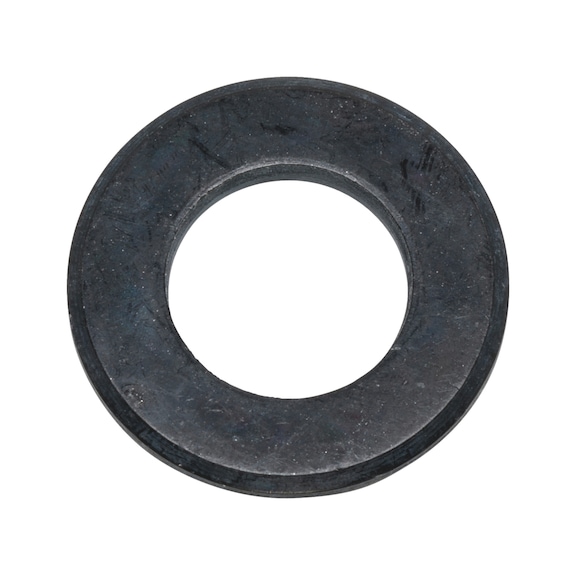

Flat Washer with Chamfer ISO 7090 | Zinc-Nickel Plated Black | 200 HV Corrosion Resistance | @Pack of 100 | by Wurth
Flat washers with chamfer ISO 7090 are designed for M6 screw threads, featuring a zinc-nickel black coating that provides high corrosion resistance for up to 480 hours. Ideal for automotive, industrial, and construction applications, these washers ensure reliable fastening and durability in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flat Washer with Chamfer ISO 7090 | Zinc-Nickel Plated Black | 200 HV Corrosion Resistance | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 46426066
Alternatively Known As: Flat chamfer washer, zinc-nickel coated washer, corrosion resistant washer, ISO 7090 washer
Technical Specifications

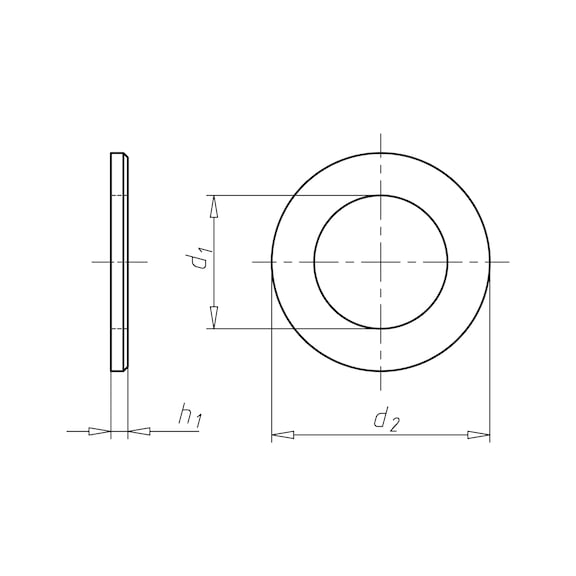

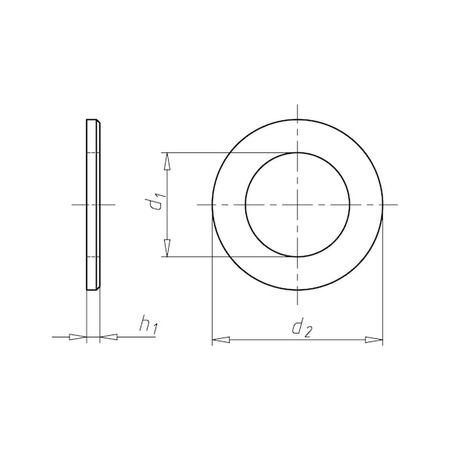

- Suitable for screw thread: M6
- Internal diameter (d1): 6.4 mm
- Outer diameter (d2): 12 mm
- Thickness (h1): 1.6 mm
- Material: Steel
- Vickers hardness: 200 HV
- Surface finish: Zinc nickel black
- Corrosion protection period: 480 hours
- Locking function: Embedding locking device
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.6mm x 12mm x 12mm
- Weight: 0.01 kg
Key Features
- Zinc-plated chromium (VI)-free zinc-nickel black coating for high corrosion resistance
- Corrosion resistance up to 480 hours according to DIN EN ISO 9227 NSS salt spray test
- Thermal capacity up to 120°C
- Even coating distribution providing both functional and decorative finish
- Embedding locking device for locking function
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper fastening and corrosion protection.
Applications
- Suitable for use with M6 screw threads in mechanical assemblies
- Ideal for applications requiring corrosion-resistant washers
- Used in automotive, industrial, and construction fastening systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Chromium (VI)-free coating reduces environmental and health hazards
- RoHS-compliant material ensures reduced toxic substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Flat Washer with Chamfer ISO 7090 Steel Zinc-Nickel Black 100 PCS is available for immediate purchase, ideal for corrosion-resistant fastening applications.
