Flat Washer for Hexagon Head Bolts | DIN 125 Standard | Corrosion-Resistant Brass | @Pack of 10 | by Wurth

BRAND: Wurth
SKU: 40000016
$15.80 List price: $19.90
10 PCS ($1.58 per PCS)
+ −
30 Days Return Delivery Options

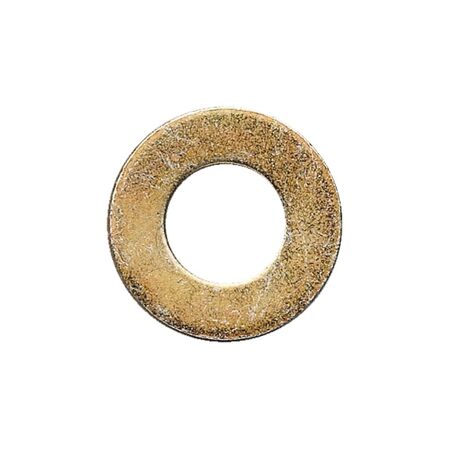

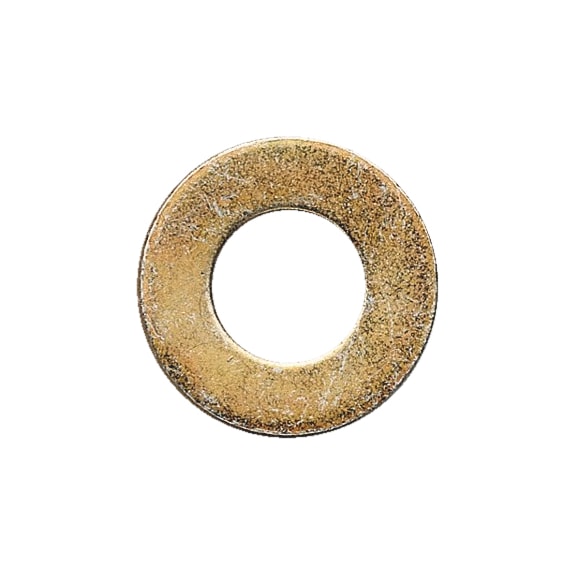

Flat washers for hexagon head bolts, made from corrosion-resistant plain brass, are perfect for M16 screw threads. Complying with DIN 125 standards, these washers are ideal for mechanical fastening in industrial and construction applications, ensuring durability and reliability in plumbing and electrical installations.

Product Name/Title: Flat Washer for Hexagon Head Bolts | DIN 125 Standard | Corrosion-Resistant Brass | @Pack of 10 | by Wurth

Brand: Wurth

SKU: 40000016

Alternatively Known As: Brass flat washer, DIN 125 washer, M16 washer, hex bolt washer, brass spacer washer

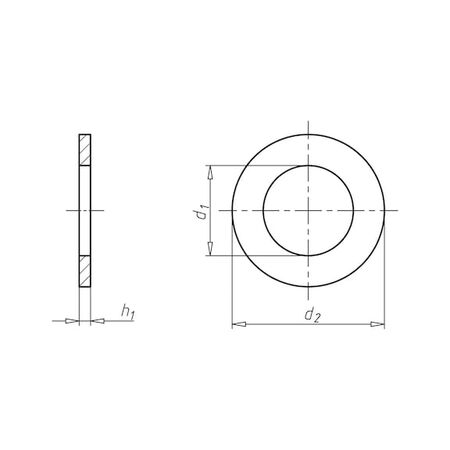

Technical Specifications
  • Suitable for screw thread: M16
  • Form: B
  • Internal diameter (d1): 17 mm
  • Outer diameter (d2): 30 mm
  • Thickness (h1): 3 mm
  • Standards: DIN 125
  • Material: Brass
  • Surface: Plain
  • RoHS-compliant: Yes
  • Dimensions (H x L x W): 3mm x 30mm x 30mm
  • Weight: 0.02 kg
Key Features
  • Made from plain brass for corrosion resistance
  • Complies with DIN 125 standard
  • Suitable for M16 screw thread
  • Form B washer type
Professional Installation Requirements
  • Installation by a qualified tradesperson or technician is recommended to ensure proper fastening and safety.
Applications
  • Mechanical fastening with hexagon head bolts and nuts
  • Industrial and construction assembly requiring brass washers
  • Corrosion-resistant fastening in plumbing and electrical installations
Standards & Compliance
  • AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
  • Brass material is recyclable and RoHS-compliant, reducing environmental impact.
Warranty Information

Standard manufacturer warranty applies.

Available Now

Wurth Flat Washer for Hexagon Head Bolts and Nuts DIN 125 Plain Brass M16 10 PCS is available for immediate purchase, ideal for industrial, construction, and maintenance applications.
