Flexible Cable 1.0mm 1C Class 6 V90HT 0.6/1kV Pink Per Metre Eltech

BRAND: Eltech
SKU: EVK13202.9
$400.50 List price: $534.00
+ −
30 Days Return Electricians Unlock Trade Access

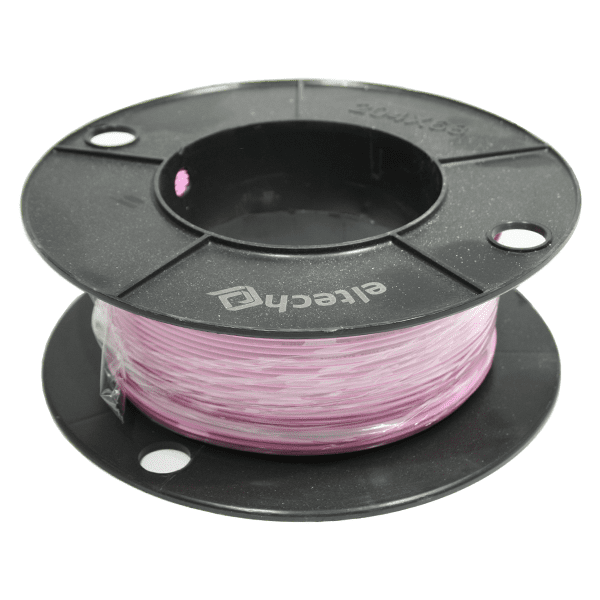

Eltech single-core flexible cable features 1.0mm Class 6 conductor, V90HT insulation and 0.6/1kV rating in pink. Ideal for switchboard wiring.

Alternatively Known As: Eltech Panel‑Flex single‑core flexible cable

Technical Specifications

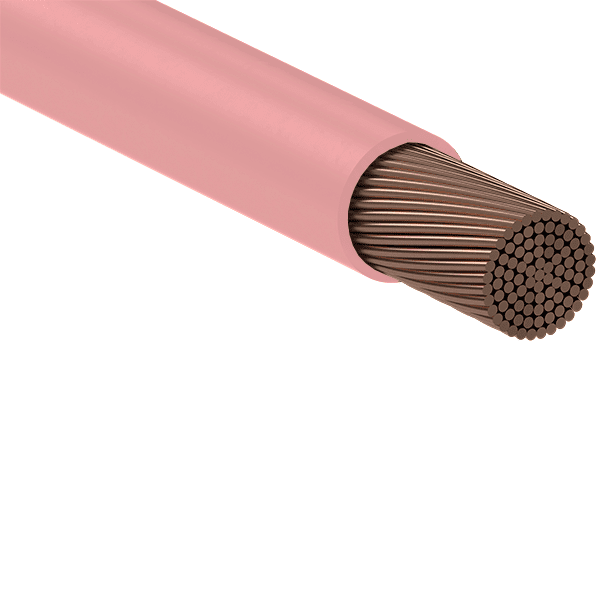

  • Conductor: 1.0 mm² tinned annealed copper, Class 6 stranding
  • Voltage Rating: 0.6/1 kV
  • Insulation Material: V90‑HT PVC
  • Operating Temperature: −15 °C to 75 °C
  • Standards: AS/NZS 5000.1, AS/NZS 3191 (insulation); AS/NZS 1125 (conductor)
  • Cable Outer Diameter: approximately 2.9 mm (per 1.0 mm² spec)
  • Stranding: 32 × 0.20 mm strands (Class 6)
  • Dimensions (H x L x W): 2.9mm x 100000mm x 2.9mm
  • Weight: 1.7 kg
Key Features
  • Flexible single‑core design suited to panel and switchboard wiring
  • High‑temperature resistant V90‑HT PVC insulation
  • Australian standards compliance ensuring safety and quality
  • Colour‑coded pink for clear circuit identification
  • Robust tinned copper conductor for corrosion resistance
Applications
  • Switchboard and control panel internal wiring
  • Flexible connections in industrial electrical assemblies
  • Colour‑coded circuit identification in electrical installations
Standards & Compliance
  • AS/NZS 5000.1 (PVC insulated cables)
  • AS/NZS 3191 (PVC insulation requirements)
  • AS/NZS 1125 (tinned copper conductors)
Environmental Benefits
  • Tinned copper conductor is recyclable and corrosion‑resistant, enhancing longevity and reducing replacement frequency
Warranty Information

Eltech offers a 7‑year warranty on applicable products when purchased and installed by a licensed Australian electrician in accordance with manufacturer’s instructions (proof of purchase required) ([eltech.com.au](https://eltech.com.au/wp-content/uploads/2022/07/Terms-and-Conditions-of-Trade-Eltech.pdf?utm_source=openai)).

Available Now

Available through authorised Australian electrical distributors; cut‑to‑length orders from 100 m increments.
