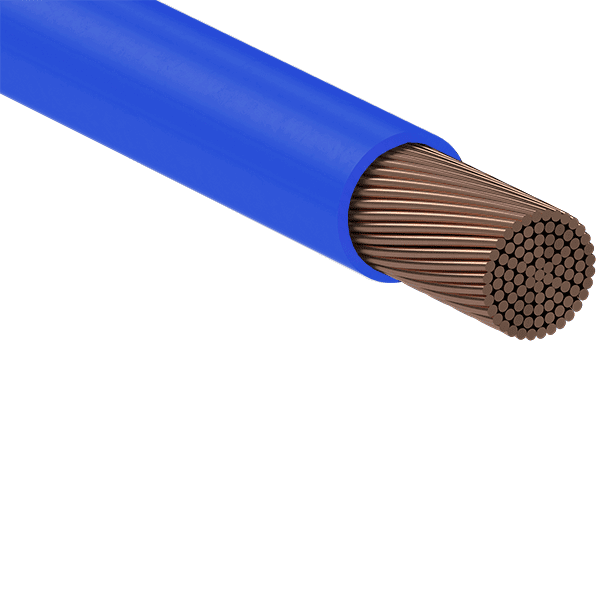

Flexible Cable 16.0mm 1C V90HT 0.6/1kV Earth Per Metre Eltech
Eltech single-core earth flexible cable features 16.0mm conductor, V90HT insulation and 0.6/1kV rating. Ideal for switchboard and panel wiring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Single core flexible earth cable 16 mm² PVC V90HT
Technical Specifications
- Conductor Size: 16.0 mm²
- Voltage Rating: 0.6/1 kV
- Insulation Type: V90HT PVC
- Colour: Earth (Green/Yellow)
- Minimum Order Quantity: 10 m
- Drum Length: 100 m
- Dimensions (H x L x W): 16mm x 100000mm x 16mm
- Weight: 1.5 kg
Key Features
- Flexible single‑core cable suitable for earth wiring
- High‑temperature V90HT PVC insulation
- Low voltage (0.6/1 kV) power distribution rating
- Available in standard drum and cut‑to‑length options
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 Wiring Rules.
Applications
- Earth wiring in switchboards and control panels
- Flexible connections in residential, commercial, and industrial power installations
Standards & Compliance
- AS/NZS 5000.1 (PVC insulated cables)
- AS/NZS 3808 (PVC insulation standard)
- AS/NZS 1125 (Tinned or annealed copper conductors)
- AS/NZS 3000 Wiring Rules
Environmental Benefits
- Durable PVC insulation reduces replacement frequency and waste
- Efficient copper conductor supports low energy loss
Warranty Information
Eltech provides a 7‑year warranty on applicable products when purchased and installed by a licensed electrician, installed per manufacturer’s instructions, and with proof of purchase. Product must not be modified. Returns require assessment. ([eltech.com.au](https://eltech.com.au/terms-conditions/?utm_source=openai))
Available Now
Available via authorised Australian electrical distributors; cut‑to‑length from 10 m, full drums of 100 m available.
