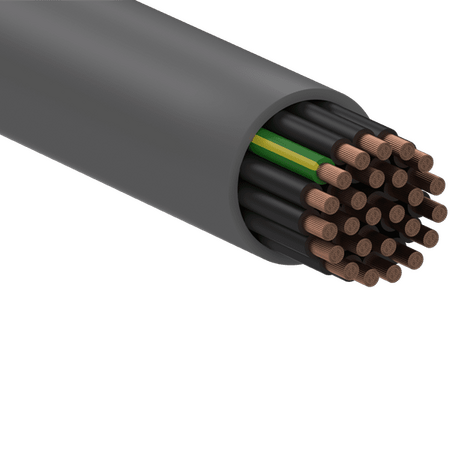

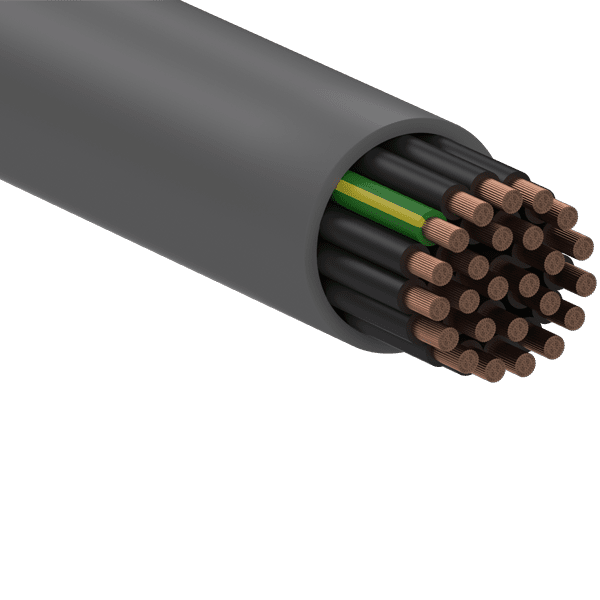

Flexible Control Cable 24C+E 2.5mm V75 300/500V Grey Per Metre Eltech
Eltech flexible control cable features 24 cores plus earth, 2.5mm V75 insulation and 300/500V rating in grey. Ideal for control panel wiring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Eltech 24 Core + Earth Flexible Control Cable
Technical Specifications
- Conductor Material: Plain annealed copper (Class 5 strand)
- Conductor Size: 2.5 mm²
- Number of Cores: 24 cores plus earth
- Insulation Material: PVC V75 (rated to 75 °C)
- Sheath Material: PVC (grey) to AS/NZS 3808, V‑75, 4V‑75
- Rated Voltage: 300/500 V
- Standards: AS/NZS 1125 conductor, AS/NZS 3808 insulation and sheath
- Dimensions (H x L x W): 143mm x 143mm x 143mm
- Weight: 0.1 kg
Key Features
- High flexibility with Class 5 stranded copper conductors
- Sequentially numbered cores for easy identification
- Includes green/yellow earth conductor
- Grey PVC outer sheath for durability and chemical resistance
- Rated for 300/500 V control wiring applications
Professional Installation Requirements
- Installation should be performed by a qualified electrician in accordance with AS/NZS 3000 Wiring Rules.
Applications
- Control panel wiring
- Industrial machinery and automation
- Signal and control circuits with multiple conductors
- Instrumentation and relay wiring
Standards & Compliance
- AS/NZS 1125 (conductor construction)
- AS/NZS 3808 (PVC insulation and sheath)
- AS/NZS 3000 (Wiring Rules)
Environmental Benefits
- Durable PVC construction reduces replacement frequency and waste
- Copper conductors are highly recyclable
Warranty Information
7‑year warranty from Eltech, valid when purchased and installed by a licensed electrician according to manufacturer’s instructions, subject to proof of purchase and unmodified product.
Available Now
Available through authorised Australian distributors and Eltech; sold per metre, typically cut to length.
