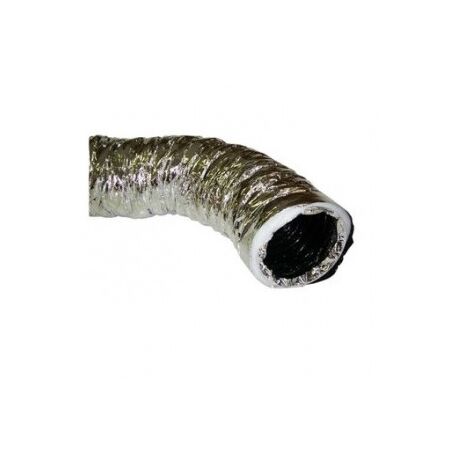

Flexible Insulated Duct R1.0 300mm Diameter 6m Length Repelec
Flexible insulated duct R1.0 is designed for HVAC applications, featuring a 300mm diameter and 6m length for optimal air distribution.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Insulated Duct R1.0 | 300mm Diameter | 6m Length | Energy Efficient | by Repelec
Brand: Repelec
SKU: AIRAWFX300-R1.0
Alternatively Known As: Insulated Flexible Duct, R1.0 Ducting, 300mm Insulated Air Duct, HVAC Insulated Duct, Flexible Air Duct 300mm
Technical Specifications
- Type: Flexible insulated duct
- Thermal Rating: R1.0
- Diameter: 300mm
- Length: 6m
- Construction: Inner core of aluminium/polyester laminate, polyester insulation, outer sleeve of metallised polyester
- Operating Temperature: -10°C to +80°C
- Maximum Air Velocity: 30 m/s
- Maximum Working Pressure: 2500 Pa
- Fire Rated to AS 4254.1
- Dimensions (H x L x W): 300mm x 6000mm x 300mm
- Weight: 4.5 kg
Key Features
- Flexible insulated ducting for HVAC applications
- Thermal insulation rating of R1.0 for energy efficiency
- Diameter: 300mm, Length: 6m
- Reduces heat loss and condensation
- Lightweight and easy to install
Professional Installation Requirements
- Installation should be performed by a qualified HVAC technician to ensure compliance with building codes and optimal system performance.
Applications
- Residential and commercial HVAC systems
- Air conditioning and ventilation ductwork
- Exhaust and supply air systems
- Suitable for new installations and retrofits
Standards & Compliance
- Complies with AS/NZS 4254.1 for ductwork for air-handling systems in buildings
Environmental Benefits
- Improves energy efficiency by reducing heat loss in ductwork
- Helps maintain indoor air quality and comfort
- Reduces HVAC system energy consumption
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Repelec DUCT INSULATED R1.0 300mm x 6m is available for immediate purchase. Ideal for HVAC installations in residential and commercial buildings.
