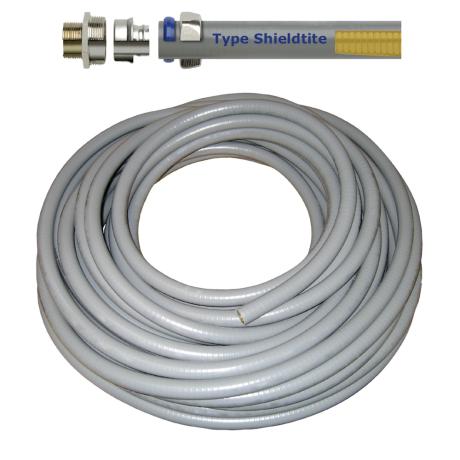

Flexible Metal Conduit 1/2" Shieldtite® EMC | 30m Length | High Electromagnetic Shielding | Durable PVC Cover | @Each by Wattmaster
Flexible Metal Conduit 1/2" Shieldtite® EMC is designed for superior cable protection, featuring a continuously interlocked bronze core for high-level electromagnetic shielding. With a durable, smooth grey thermoplastic PVC cover, it resists sunlight, heat, oil, and chemicals, making it ideal for commercial and industrial electrical wiring applications that require flexibility and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit 1/2" Shieldtite® EMC | 30m Length | High Electromagnetic Shielding | Durable PVC Cover | @Each by Wattmaster
Brand: Wattmaster
SKU: ANAEMC12
Alternatively Known As: Shieldtite EMC Flexible Metal Conduit, 1/2 inch EMC conduit, Flexible EMI Shielded Conduit
Technical Specifications
- Conduit Size: 1/2 inch (20mm nominal)
- Length: 30 meters
- Core: Continuously interlocked high shielding bronze core
- Cover: Smooth grey thermoplastic PVC
- Shielding Effectiveness: 81 – 119 dB at 1 MHz to 1 GHz
- Standards: Meets Mil–STD–1310D for EMI and EMP shielding
- Cover Properties: Abrasion resistant, flame retardant, sunlight resistant, heat, oil and chemical resistant
- Installation: Uses standard liquid-tight fittings
- Dimensions (H x L x W): 15mm x 30000mm x 15mm
- Weight: 2.5 kg
Key Features
- Provides cable protection with high-level electromagnetic shielding
- Smooth grey thermoplastic PVC cover resistant to sunlight, heat, oil, and chemicals
- Extra flexible with a special continuously interlocked bronze core for exceptional shielding
- Meets Mil–STD–1310D standards for EMI and EMP shielding
- Shielding effectiveness of 81 – 119 dB from 1 MHz to 1 GHz
- Durable, abrasion resistant, flame retardant, and sunlight resistant cover
- Uses standard liquid-tight fittings for easy installation
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper shielding performance.
Applications
- Electrical wiring protection in commercial and industrial buildings
- Shielding cables from electromagnetic interference (EMI) and electromagnetic pulses (EMP)
- Use in exposed or concealed conduit installations requiring high flexibility and durability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Flame retardant and chemical resistant properties enhance safety and longevity
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Flexible Metal Conduit 1/2" Shieldtite® EMC 30m is available for immediate purchase, ideal for industrial and commercial electrical wiring applications requiring high EMI protection.
