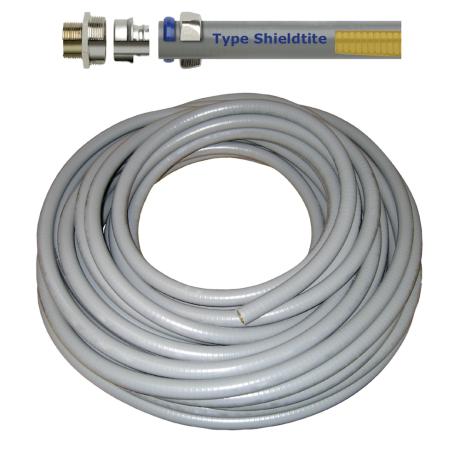

Flexible Metal Conduit 3" Shieldtite® EMC | 7.62m Length | High Electromagnetic Shielding | Smooth Grey PVC Cover | by Wattmaster
Flexible Metal Conduit 3" Shieldtite® EMC is designed for superior cable protection with high-level electromagnetic shielding. Ideal for commercial and industrial applications, it features a smooth grey thermoplastic PVC cover that resists sunlight, heat, oil, and chemicals. With a continuously interlocked bronze core, this conduit meets Mil–STD–1310D standards, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit 3" Shieldtite® EMC | 7.62m Length | High Electromagnetic Shielding | Smooth Grey PVC Cover | by Wattmaster
Brand: Wattmaster
SKU: ANAEMC300
Alternatively Known As: 3 inch Flexible Metal Conduit, Shieldtite EMC Conduit, Flexible EMC Conduit 3 inch, EMI Shielded Conduit
Technical Specifications
- Conduit Diameter: 3 inches (76 mm)
- Length: 7.62 meters
- Core Material: Continuously interlocked high shielding bronze
- Cover Material: Smooth grey thermoplastic PVC
- Shielding Effectiveness: 81 – 119 dB at 1 MHz to 1 GHz
- Standards Compliance: Meets Mil–STD–1310D for EMI and EMP shielding
- Resistance: Flame retardant, abrasion resistant, sunlight resistant, oil and chemical resistant
- Installation: Uses standard liquid-tight fittings
- Dimensions (H x L x W): 76mm x 7620mm x 76mm
- Weight: 2.5 kg
Key Features
- Provides cable protection with high-level electromagnetic shielding
- Smooth grey thermoplastic PVC cover resistant to sunlight, heat, oil, and chemicals
- Extra flexible with a special continuously interlocked bronze core for superior shielding
- Meets Mil–STD–1310D standards for EMI and EMP shielding
- Shielding effectiveness of 81 – 119 dB from 1 MHz to 1 GHz
- Uses standard liquid-tight fittings for easy installation
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper shielding performance.
Applications
- Electrical wiring protection in commercial and industrial buildings
- Shielding cables from electromagnetic interference (EMI) and electromagnetic pulses (EMP)
- Use in exposed or harsh environments requiring abrasion and sunlight resistance
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Protects cables from electromagnetic interference, improving energy efficiency of electrical systems
Warranty Information
Warranty terms available upon request from Wattmaster, typically covering manufacturing defects.
Available Now
The Wattmaster Flexible Metal Conduit 3" Shieldtite® EMC 7.62m is available for immediate purchase, ideal for industrial and commercial electrical shielding applications.
