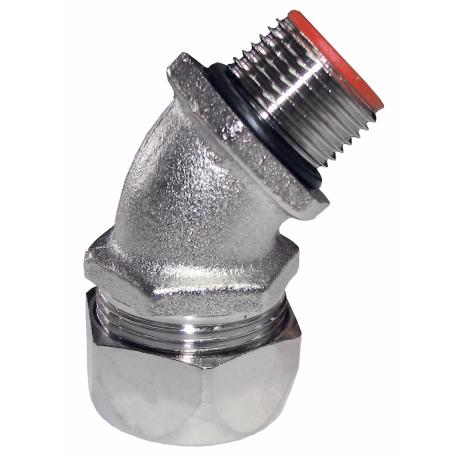

Flexible Metal Conduit Fitting 45 Degree | 1" Male Thread | Brass & Nickel Plated | @Each by Wattmaster
The Flexible Metal Conduit Fitting 45 Degree is designed for reliable connections in electrical conduit installations, featuring a 1" male thread and a durable brass body with nickel plating for corrosion resistance. Ideal for both indoor and outdoor wet corrosive environments, this fitting ensures a dust and liquid-tight seal, making it perfect for various applications requiring high durability and compliance with electrical safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit Fitting 45 Degree | 1" Male Thread | Brass & Nickel Plated | @Each by Wattmaster
Brand: Wattmaster
SKU: C32/M32/45A
Alternatively Known As: 45 Degree Flexible Metal Conduit Connector, 1 Inch Male Thread Conduit Fitting, M32 Flexible Conduit Fitting
Technical Specifications
- Inside Diameter: 23.5mm
- Thread Size: M32 Male
- Angle: 45 Degree
- Body and Cap Material: Brass, Nickel Plated
- Ferrule Material: Tin Plated Steel
- Inner Seal Material: Polyamide 6
- Throat Insulator Material: Polyamide 6
- Temperature Range: –45°C to +105°C
- Dimensions (H x L x W): 40mm x 50mm x 40mm
- Weight: 0.1 kg
Key Features
- Provides dust and liquid-tight connection to liquid-tight flexible metal conduit
- Body and cap made of brass with nickel plating for corrosion resistance
- Ferrule constructed from tin plated steel
- Inner seal and throat insulator made from durable Polyamide 6
- Temperature range from –45°C to +105°C suitable for various environments
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Indoor and outdoor wet corrosive environments
- Electrical conduit installations requiring dust and liquid-tight connections
- Use with liquid-tight flexible metal conduit systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Nickel plating enhances corrosion resistance, extending product life
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wattmaster Flexible Metal Conduit Fitting 45 Degree 1" Male Thread M32 is available for immediate purchase, ideal for electrical conduit installations in corrosive and wet environments.
