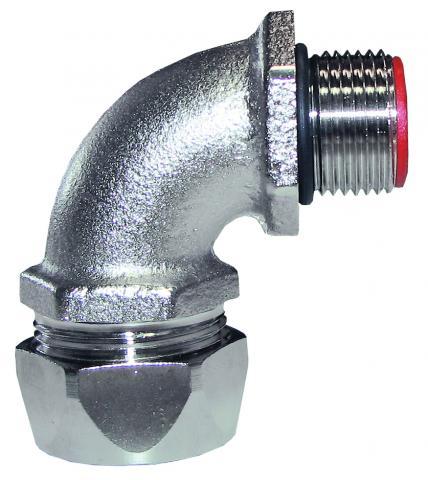

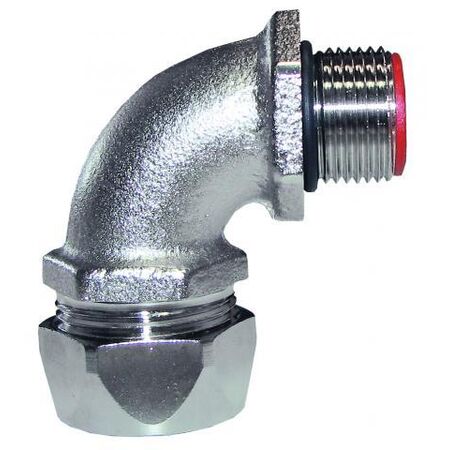

Flexible Metal Conduit Fitting 90 Degree | 1 1/2" Male Thread | Dust & Liquid-Tight | by Wattmaster
The Flexible Metal Conduit Fitting 90 Degree is designed for reliable electrical conduit installations, featuring a 1 1/2" male thread and a durable brass body with nickel plating. Ideal for both indoor and outdoor wet corrosive environments, this fitting ensures a dust and liquid-tight connection, making it perfect for industrial and commercial wiring protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit Fitting 90 Degree | 1 1/2" Male Thread | Dust & Liquid-Tight | by Wattmaster
Brand: Wattmaster
SKU: C50/M50/90A
Alternatively Known As: Flexible Metal Conduit Elbow, 90 Degree Conduit Connector, M50 Flexible Conduit Fitting
Technical Specifications
- Inside Diameter: 36.8mm
- Thread Size: 1 1/2" Male Thread M50 (Metric Thread 50mm)
- Total Length: 18mm
- Material: Brass body and cap with nickel plating, tin plated steel ferrule
- Seals: Inner seal and throat insulator made of Polyamide 6
- Temperature Range: –45°C to +105°C
- Design: 90 degree angle fitting
- Dimensions (H x L x W): 50mm x 18mm x 50mm
- Weight: 0.15 kg
Key Features
- Provides dust and liquid-tight connection to liquid-tight flexible metal conduit
- Body and cap made of brass with nickel plating for corrosion resistance
- Ferrule constructed from tin plated steel
- Inner seal and throat insulator made from durable Polyamide 6
- Temperature range from –45°C to +105°C suitable for various environments
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing.
Applications
- Indoor and outdoor wet corrosive environments
- Electrical conduit installations requiring dust and liquid-tight connections
- Industrial and commercial electrical wiring protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Nickel plating and corrosion resistance extend product life in harsh environments
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Flexible Metal Conduit Fitting 90 Degree 1 1/2" Male Thread M50 is available for immediate purchase, ideal for electrical conduit installations in corrosive and wet environments.
