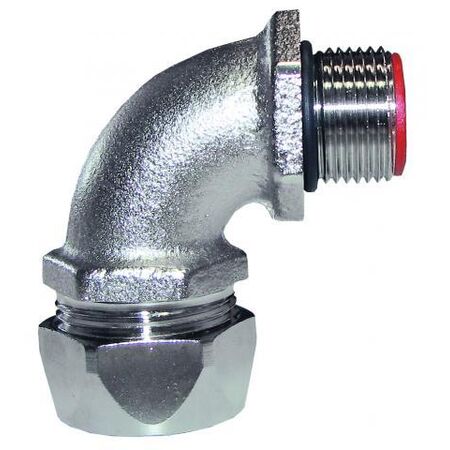

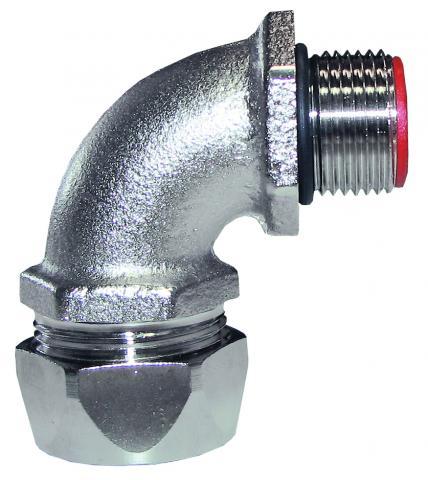

Flexible Metal Conduit Fitting 90 Degree | 3/4" Male Thread | Brass Body with Nickel Plating | @Each by Wattmaster
The Flexible Metal Conduit Fitting 90 Degree is designed for reliable electrical conduit installations, featuring a 3/4" male thread and a durable brass body with nickel plating for enhanced corrosion resistance. Ideal for both indoor and outdoor wet corrosive environments, this fitting ensures a dust and liquid-tight connection, making it perfect for various electrical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit Fitting 90 Degree | 3/4" Male Thread | Brass Body with Nickel Plating | @Each by Wattmaster
Brand: Wattmaster
SKU: C25/M25/90A
Alternatively Known As: 90 Degree Flexible Metal Conduit Connector, 3/4" Male Thread Conduit Fitting, M25 Flexible Conduit Elbow
Technical Specifications
- Inside Diameter: 18.5mm
- Thread Size: 3/4" Male Thread M25
- Material: Brass body and cap with nickel plating
- Ferrule: Tin plated steel
- Inner Seal: Polyamide 6
- Throat Insulator: Polyamide 6
- Temperature Range: –45°C to +105°C
- Type: 90 Degree Flexible Metal Conduit Fitting
- Dimensions (H x L x W): 25mm x 40mm x 25mm
- Weight: 0.1 kg
Key Features
- Provides dust and liquid-tight connection to liquid-tight flexible metal conduit
- Body and cap made of brass with nickel plating for corrosion resistance
- Ferrule made of tin plated steel
- Inner seal and throat insulator made of durable Polyamide 6
- Temperature range from –45°C to +105°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing.
Applications
- Indoor and outdoor wet corrosive environments
- Electrical conduit installations requiring dust and liquid-tight connections
- Use with liquid-tight flexible metal conduit systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Nickel plating enhances corrosion resistance, extending product life
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Flexible Metal Conduit Fitting 90 Degree 3/4" Male Thread M25 is available for immediate purchase, ideal for electrical conduit installations in corrosive and wet environments.
