Flexible Metal Conduit Fitting Straight | 1 1/2" Male Thread | Dust & Liquid-Tight | @Each by Wattmaster

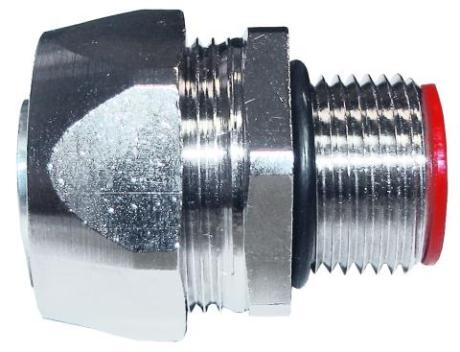

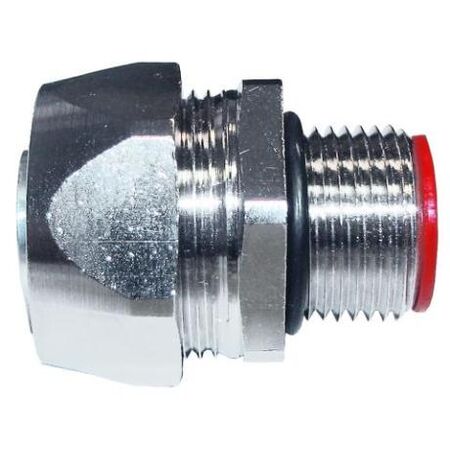

The Flexible Metal Conduit Fitting Straight is designed for reliable connections in electrical conduit installations, featuring a 1 1/2" male thread and a 36.8mm inside diameter. Built for both indoor and outdoor wet corrosive environments, this fitting ensures a dust and liquid-tight seal, making it ideal for various applications. Crafted from durable materials, it offers excellent corrosion resistance and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit Fitting Straight | 1 1/2" Male Thread | Dust & Liquid-Tight | @Each by Wattmaster
Brand: Wattmaster
SKU: C50/M50
Alternatively Known As: Flexible Metal Conduit Connector, Straight Metal Conduit Fitting, M50 Flexible Conduit Fitting
Technical Specifications
- Inside Diameter: 36.8mm
- Thread Size: 1 1/2" Male Thread M50 Metric
- Total Length: 18mm
- Body and Cap Material: Brass, Nickel Plated
- Ferrule Material: Tin Plated Steel
- Inner Seal Material: Polyamide 6
- Throat Insulator Material: Polyamide 6
- Nut Material: Brass, Nickel Plated
- Temperature Range: –45°C to +105°C
- Dimensions (H x L x W): 18mm x 50mm x 50mm
- Weight: 0.1 kg
Key Features
- Provides dust and liquid-tight connection to liquid-tight flexible metal conduit
- Body and cap made of brass with nickel plating for corrosion resistance
- Ferrule constructed from tin plated steel
- Inner seal and throat insulator made from durable Polyamide 6
- Temperature range from –45°C to +105°C suitable for various environments
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Indoor and outdoor wet corrosive environments
- Electrical conduit installations requiring dust and liquid-tight connections
- Use with liquid-tight flexible metal conduit systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Nickel plating and durable materials extend product life reducing waste
- Enables secure conduit connections that protect wiring from environmental damage
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific terms.
Available Now
The Wattmaster Flexible Metal Conduit Fitting Straight 1 1/2" Male Thread M50 is available for immediate purchase, ideal for electrical conduit installations in corrosive and wet environments.
