Trade Discount 17%

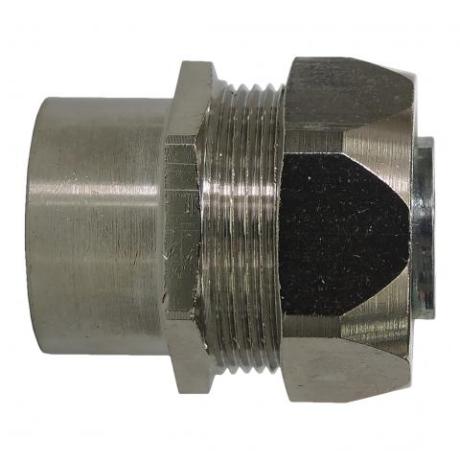

Flexible Metal Conduit Fitting Straight | 1 1/4" Female Thread | Brass & Nickel Plated | @Each by Wattmaster
The Flexible Metal Conduit Fitting Straight is designed for reliable connections in electrical conduit installations, featuring a 1 1/4" female thread and a durable brass body with nickel plating for corrosion resistance. Ideal for both indoor and outdoor wet corrosive environments, this fitting ensures a dust and liquid-tight seal, making it perfect for harsh conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit Fitting Straight | 1 1/4" Female Thread | Brass & Nickel Plated | @Each by Wattmaster
Brand: Wattmaster
SKU: C40/M40-FC
Alternatively Known As: Flexible Metal Conduit Connector, M40 Female Thread Conduit Fitting, Liquid-tight Flexible Conduit Fitting
Technical Specifications
- Thread Size: 1 1/4" Female Thread M40 ISO Metric
- Inside Diameter: 31.8mm
- Body and Cap Material: Brass, Nickel Plated
- Ferrule Material: Tin Plated Steel
- Inner Seal Material: Polyamide 6
- Throat Insulator Material: Polyamide 6
- Temperature Range: -45°C to +105°C
- Suitable for indoor and outdoor wet corrosive environments
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.15 kg
Key Features
- Provides dust and liquid-tight connection to liquid-tight flexible metal conduit
- Body and cap made of brass with nickel plating for corrosion resistance
- Ferrule constructed from tin plated steel
- Inner seal and throat insulator made from durable Polyamide 6
- Wide temperature range from -45°C to +105°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing.
Applications
- Indoor and outdoor wet corrosive environments
- Electrical conduit installations requiring dust and liquid-tight connections
- Use with liquid-tight flexible metal conduit systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Nickel plating and durable materials extend product life, reducing waste
- Enables secure conduit connections that prevent ingress of dust and liquids, protecting electrical systems and reducing maintenance
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Flexible Metal Conduit Fitting Straight 1 1/4" Female Thread M40 is available for immediate purchase, ideal for electrical conduit installations in harsh environments.
