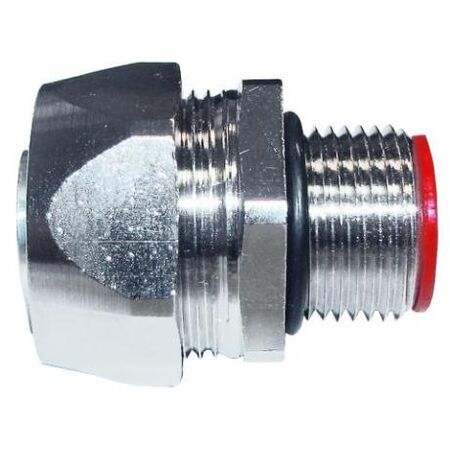

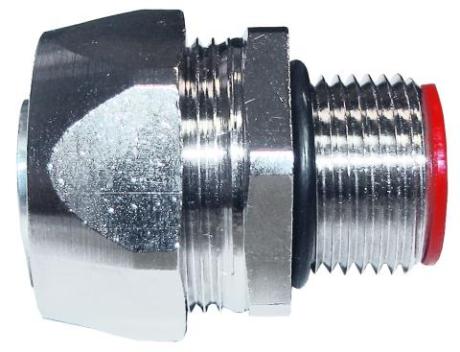

Flexible Metal Conduit Fitting Straight | 1 1/4" Male Thread M40 | Dust & Liquid-Tight | Corrosion Resistant | @Each by Wattmaster
The Flexible Metal Conduit Fitting Straight is designed for reliable electrical conduit installations in both indoor and outdoor wet corrosive environments. Featuring a 1 1/4" male thread M40 and a durable brass body with nickel plating, it ensures a dust and liquid-tight connection. Ideal for professional electricians, this fitting provides long-lasting performance and compliance with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit Fitting Straight | 1 1/4" Male Thread M40 | Dust & Liquid-Tight | Corrosion Resistant | @Each by Wattmaster
Brand: Wattmaster
SKU: C40/M40
Alternatively Known As: Flexible Metal Conduit Connector, FMC Straight Fitting, M40 Male Thread Conduit Fitting
Technical Specifications
- Inside Diameter: 31.8mm
- Thread Size: 1 1/4" Male Thread M40
- Total Length: 16mm
- Body and Cap Material: Brass, Nickel Plated
- Ferrule Material: Tin Plated Steel
- Inner Seal Material: Polyamide 6
- Throat Insulator Material: Polyamide 6
- Nut Material: Brass, Nickel Plated
- Temperature Range: –45°C to +105°C
- Dimensions (H x L x W): 40mm x 16mm x 40mm
- Weight: 0.1 kg
Key Features
- Suitable for indoor or outdoor wet corrosive environments
- Provides dust and liquid-tight connection to liquid-tight flexible metal conduit
- Body and cap made of brass with nickel plating for corrosion resistance
- Ferrule made of tin plated steel
- Inner seal and throat insulator made of durable Polyamide 6
- Nut made of brass with nickel plating
- Temperature range from –45°C to +105°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing.
Applications
- Indoor and outdoor wet corrosive environments
- Electrical conduit installations requiring dust and liquid-tight connections
- Use with liquid-tight flexible metal conduit systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Nickel plating enhances corrosion resistance, extending product life
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Flexible Metal Conduit Fitting Straight 1 1/4" Male Thread M40 is available for immediate purchase, ideal for electrical conduit installations in corrosive and wet environments.
