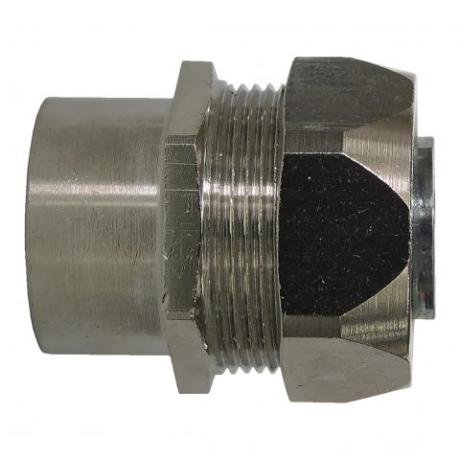

Flexible Metal Conduit Fitting Straight | 1/2" Female Thread | Brass & Nickel Plated | Dust & Liquid-Tight | by Wattmaster
The Flexible Metal Conduit Fitting Straight is designed for reliable electrical conduit installations in both indoor and outdoor wet corrosive environments. Featuring a 1/2" female thread and a durable brass body with nickel plating, it ensures a dust and liquid-tight connection. Ideal for professional electricians, this fitting withstands temperatures from –45°C to +105°C, making it perfect for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit Fitting Straight | 1/2" Female Thread | Brass & Nickel Plated | Dust & Liquid-Tight | by Wattmaster
Brand: Wattmaster
SKU: C20/M20-FC
Alternatively Known As: Flexible Metal Conduit Connector, FMC Fitting, Straight Conduit Fitting, 1/2 inch Female Thread Conduit Connector
Technical Specifications
- Thread Size: 1/2" Female Thread M20 ISO Metric
- Inside Diameter: 13.5mm
- Body and Cap Material: Brass, Nickel Plated
- Ferrule Material: Tin Plated Steel
- Inner Seal Material: Polyamide 6
- Throat Insulator Material: Polyamide 6
- Nut Material: Brass, Nickel Plated
- Temperature Range: –45°C to +105°C
- Dimensions (H x L x W): 20mm x 40mm x 20mm
- Weight: 0.1 kg
Key Features
- Suitable for indoor or outdoor wet corrosive environments
- Provides dust and liquid-tight connection to liquid-tight flexible metal conduit
- Body and cap made of brass with nickel plating for corrosion resistance
- Ferrule made of tin plated steel
- Inner seal and throat insulator made of durable Polyamide 6
- Nut made of brass with nickel plating
- Wide temperature range from –45°C to +105°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing.
Applications
- Indoor and outdoor wet and corrosive environments
- Electrical conduit installations requiring dust and liquid-tight connections
- Use with liquid-tight flexible metal conduit systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Corrosion-resistant plating extends product life in harsh environments
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Flexible Metal Conduit Fitting Straight 1/2" Female Thread M20 is available for immediate purchase, ideal for electrical conduit installations in corrosive and wet environments.
