Trade Discount 17%

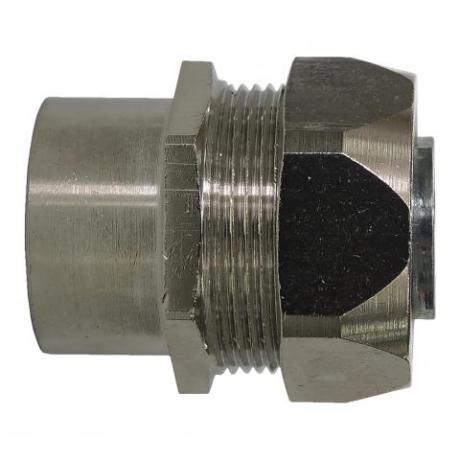

Flexible Metal Conduit Fitting Straight | 3/4" Female Thread | Brass & Nickel Plated | @Each by Wattmaster
The Flexible Metal Conduit Fitting Straight is designed for reliable electrical conduit installations, featuring a 3/4" female thread and an inside diameter of 18.5mm. Built with brass and nickel plating for corrosion resistance, it ensures a dust and liquid-tight connection, making it ideal for both indoor and outdoor wet corrosive environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit Fitting Straight | 3/4" Female Thread | Brass & Nickel Plated | @Each by Wattmaster
Brand: Wattmaster
SKU: C25/M25-FC
Alternatively Known As: Flexible Metal Conduit Connector, FMC Straight Fitting, 3/4 inch Female Thread Conduit Fitting
Technical Specifications
- Inside Diameter: 18.5mm
- Thread Type: ISO Metric Thread M25
- Body and Cap Material: Brass, Nickel Plated
- Ferrule Material: Tin Plated Steel
- Inner Seal Material: Polyamide 6
- Throat Insulator Material: Polyamide 6
- Nut Material: Brass, Nickel Plated
- Temperature Range: –45°C to +105°C
- Dimensions (H x L x W): 30mm x 40mm x 25mm
- Weight: 0.1 kg
Key Features
- Provides dust and liquid-tight connection to liquid-tight flexible metal conduit
- Body and cap made of brass with nickel plating for corrosion resistance
- Ferrule constructed from tin plated steel
- Inner seal and throat insulator made from durable Polyamide 6
- Temperature range from –45°C to +105°C suitable for various environments
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing.
Applications
- Indoor and outdoor wet corrosive environments
- Electrical conduit installations requiring dust and liquid-tight connections
- Use with liquid-tight flexible metal conduit systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Nickel plating and corrosion resistance extend product life in harsh environments
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Wattmaster Flexible Metal Conduit Fitting Straight 3/4" Female Thread M25 is available for immediate purchase, ideal for electrical conduit installations in corrosive and wet environments.
