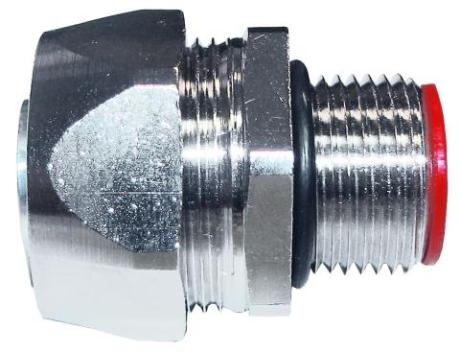

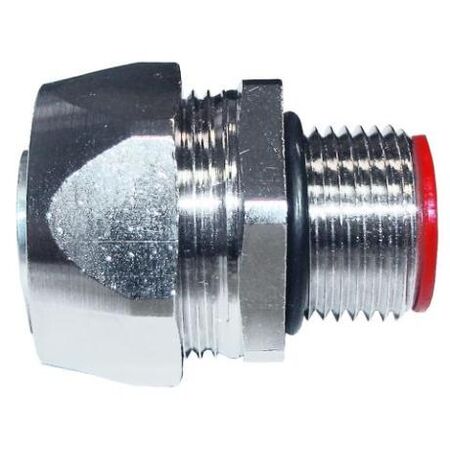

Flexible Metal Conduit Fitting Straight 2" Male Thread | M63 Metric Thread | Dust & Liquid-Tight Connection | by Wattmaster
The Flexible Metal Conduit Fitting Straight 2" Male Thread is designed for reliable electrical conduit installations in both indoor and outdoor wet corrosive environments. With a durable brass body and nickel plating, it ensures a dust and liquid-tight connection, making it ideal for various applications. This fitting is built to withstand temperatures from –45°C to +105°C, providing long-lasting performance and protection for your wiring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit Fitting Straight 2" Male Thread | M63 Metric Thread | Dust & Liquid-Tight Connection | by Wattmaster
Brand: Wattmaster
SKU: C63/M63
Alternatively Known As: Flexible Metal Conduit Connector, FMC Straight Fitting, 2 Inch Male Thread Conduit Fitting, M63 Flexible Conduit Fitting
Technical Specifications
- Inside Diameter: 47.8mm
- Thread Size: M63 Metric Thread
- Total Length: 20mm
- Body and Cap Material: Brass, Nickel Plated
- Ferrule Material: Tin Plated Steel
- Inner Seal Material: Polyamide 6
- Throat Insulator Material: Polyamide 6
- Nut Material: Brass, Nickel Plated
- Temperature Range: –45°C to +105°C
- Dimensions (H x L x W): 20mm x 63mm x 63mm
- Weight: 0.3 kg
Key Features
- Provides dust and liquid-tight connection to liquid-tight flexible metal conduit
- Body and cap made of brass with nickel plating for corrosion resistance
- Ferrule constructed from tin plated steel
- Inner seal and throat insulator made from durable Polyamide 6
- Temperature range from –45°C to +105°C suitable for various environments
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing.
Applications
- Indoor and outdoor wet corrosive environments
- Electrical conduit installations requiring dust and liquid-tight connections
- Use with liquid-tight flexible metal conduit systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Nickel plating and durable materials extend product life reducing waste
- Enables secure conduit connections that protect wiring from environmental damage, reducing maintenance and replacement
Warranty Information
Standard manufacturer warranty against defects applies; please refer to Wattmaster for specific terms.
Available Now
The Wattmaster Flexible Metal Conduit Fitting Straight 2" Male Thread M63 is available for immediate purchase, ideal for electrical conduit installations in corrosive and wet environments.
