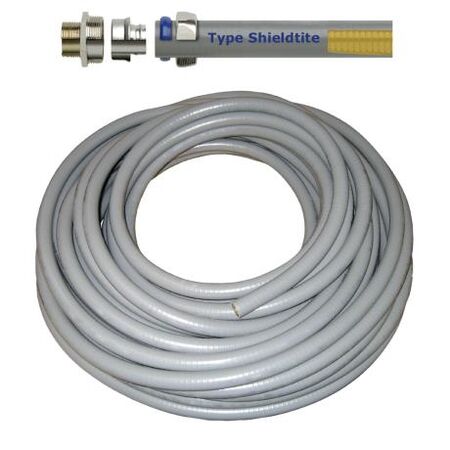

Flexible Metal Conduit 1" Shieldtite® EMC | 30m Length | High Electromagnetic Shielding | Abrasion & Flame Resistant | by Wattmaster
Flexible Metal Conduit 1" Shieldtite® EMC is designed for superior cable protection with high-level electromagnetic shielding, making it ideal for commercial and industrial electrical wiring applications. Featuring a continuously interlocked bronze core and a smooth grey thermoplastic PVC cover, this conduit is both abrasion and flame resistant, ensuring durability in exposed environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit 1" Shieldtite® EMC | 30m Length | High Electromagnetic Shielding | Abrasion & Flame Resistant | by Wattmaster
Brand: Wattmaster
SKU: ANAEMC100
Alternatively Known As: Shieldtite Flexible Metal Conduit, EMC Flexible Conduit, Bronze Core Flexible Conduit, EMI Shielded Conduit
Technical Specifications
- Conduit Diameter: 32mm
- Length: 30 meters
- Core Material: Continuously interlocked bronze for high shielding effectiveness
- Cover Material: Smooth grey thermoplastic PVC
- Shielding Effectiveness: 81 – 119 dB at 1 MHz to 1 GHz
- Standards Compliance: Meets Mil–STD–1310D for EMI and EMP shielding
- Resistance: Flame retardant, abrasion resistant, sunlight resistant, heat, oil, and chemical resistant
- Installation: Compatible with standard liquid-tight fittings
- Dimensions (H x L x W): 32mm x 30000mm x 32mm
- Weight: 3.5 kg
Key Features
- Provides cable protection with high-level electromagnetic shielding
- Smooth grey thermoplastic PVC cover that is abrasion resistant, flame retardant, and sunlight resistant
- Extra flexible wiring conduit with a special continuously interlocked bronze core
- Meets Mil–STD–1310D for EMI and EMP shielding
- Shielding effectiveness of 81 – 119 dB from 1 MHz to 1 GHz
- Uses standard liquid-tight fittings for easy installation
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper shielding performance.
Applications
- Electrical wiring protection in commercial and industrial buildings
- Shielding cables from electromagnetic interference (EMI) and electromagnetic pulses (EMP)
- Use in exposed applications requiring durable and flexible conduit
- Suitable for environments with exposure to sunlight, heat, oil, and chemicals
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Flame retardant and sunlight resistant properties enhance longevity in outdoor applications
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Flexible Metal Conduit 1" Shieldtite® EMC 30m is available for immediate purchase, ideal for industrial and commercial electrical wiring applications requiring high-level EMI shielding.
