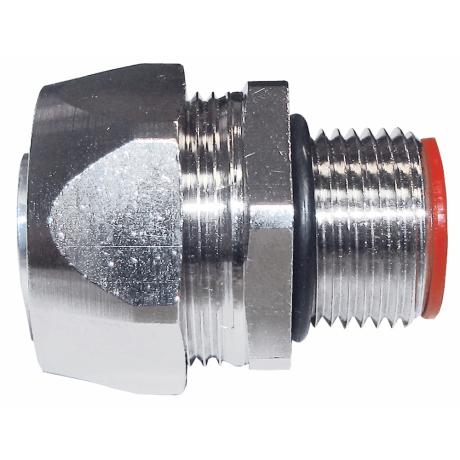

Flexible Stainless Steel 316 Conduit Fitting | 1 1/4" Male Thread | Dust & Liquid Tight | by Wattmaster
Flexible Stainless Steel 316 Conduit Fitting is designed for reliable electrical conduit installations in corrosive environments. With a 1 1/4" male thread and an inside diameter of 31.8mm, it ensures a dust and liquid-tight connection, making it ideal for both indoor and outdoor applications. Constructed from high-quality stainless steel grade 316, this fitting offers superior corrosion resistance and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Stainless Steel 316 Conduit Fitting | 1 1/4" Male Thread | Dust & Liquid Tight | by Wattmaster
Brand: Wattmaster
SKU: C40/M40-SS
Alternatively Known As: Stainless Steel Conduit Fitting, SS316 Flexible Conduit Connector, M40 Conduit Fitting, Metal Conduit Fitting, Liquid Tight Conduit Fitting
Technical Specifications
- Material: Stainless Steel Grade 316 body and cap
- Ferrule: Tin Plated Steel
- Inner Seal: Polyamide 6
- Throat Insulator: Polyamide 6
- Conduit Nut: Stainless Steel Grade 316
- Inside Diameter: 31.8mm
- Thread Size: 1 1/4" Male Thread M40
- Temperature Range: –45°C to +105°C
- Dimensions (H x L x W): 16mm x 40mm x 40mm
- Weight: 0.15 kg
Key Features
- Constructed from stainless steel grade 316 for superior corrosion resistance
- Provides dust and liquid-tight connection to flexible metal conduit
- Includes body and cap made from SS Grade 316
- Ferrule made from tin plated steel for durability
- Inner seal and throat insulator made from Polyamide 6
- Conduit nut made from SS Grade 316
- Operates in temperature range from –45°C to +105°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing.
Applications
- Indoor and outdoor wet corrosive environments
- Electrical conduit installations requiring dust and liquid-tight connections
- Use with liquid-tight flexible metal conduit systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Stainless steel construction ensures long product life reducing waste
- Corrosion resistance minimizes need for replacements and maintenance
- Supports safe and secure electrical installations reducing environmental hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
Available for immediate purchase, ideal for electrical conduit installations in corrosive indoor and outdoor environments.
