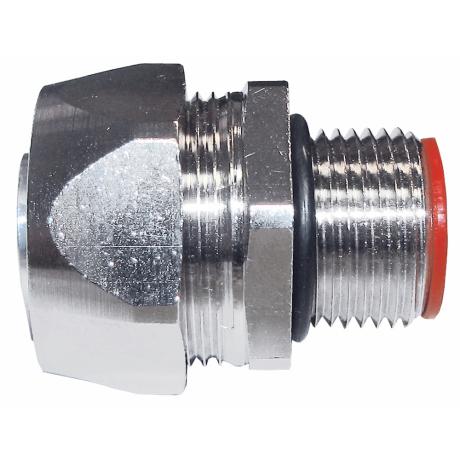

Flexible Stainless Steel 316 Conduit Fitting | 1/2" Male Thread | Dust & Liquid-Tight | by Wattmaster
Flexible Stainless Steel 316 Conduit Fitting is designed for reliable connections in corrosive environments, featuring a 1/2" male thread and a durable construction that ensures dust and liquid-tight sealing. Ideal for both indoor and outdoor electrical conduit installations, this fitting operates effectively in temperatures ranging from –45°C to +105°C, making it perfect for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Stainless Steel 316 Conduit Fitting | 1/2" Male Thread | Dust & Liquid-Tight | by Wattmaster
Brand: Wattmaster
SKU: C20/M20-SS
Alternatively Known As: SS316 Flexible Conduit Fitting, Stainless Steel Conduit Connector, M20 Conduit Fitting, Liquid-tight Flexible Conduit Fitting
Technical Specifications
- Material: Stainless Steel Grade 316 body and cap
- Ferrule: Tin Plated Steel
- Inner Seal: Polyamide 6
- Throat Insulator: Polyamide 6
- Conduit Nut: Stainless Steel Grade 316
- Thread Size: 1/2" Male Thread M20
- Inside Diameter: 13.5mm
- Total Length: 13mm
- Temperature Range: –45°C to +105°C
- Dimensions (H x L x W): 20mm x 13mm x 20mm
- Weight: 0.1 kg
Key Features
- Constructed from high-grade Stainless Steel 316 for superior corrosion resistance
- Provides dust and liquid-tight connection to flexible metal conduit
- Includes body and cap made from SS Grade 316
- Ferrule made from tin plated steel for durability
- Inner seal and throat insulator made from Polyamide 6
- Conduit nut made from SS Grade 316
- Operates effectively in temperature range from –45°C to +105°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing.
Applications
- Indoor and outdoor wet corrosive environments
- Electrical conduit installations requiring dust and liquid-tight connections
- Use with liquid-tight flexible metal conduit systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements, minimizing waste
- Corrosion resistance extends product life in harsh environments, reducing environmental impact
Warranty Information
Warranty terms as provided by Wattmaster, typically covering manufacturing defects.
Available Now
Available for immediate purchase, ideal for electrical conduit installations in corrosive and wet environments.
