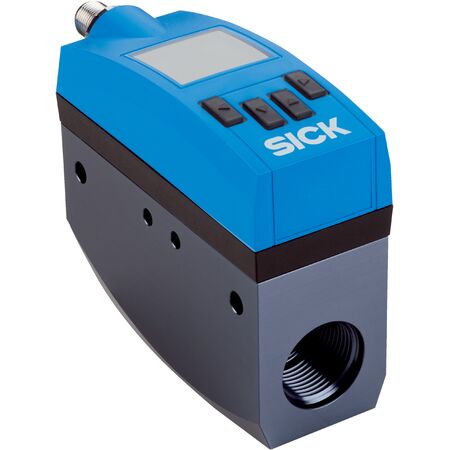

Flow Meter DN15 | High Measurement Accuracy | IP65/IP67 Rated | by SICK
The Flow Meter DN15 is designed for precise measurement of mass, volume, and energy in compressed air and gases. With high measurement accuracy and a robust IP65/IP67 enclosure, it's perfect for industrial process monitoring and energy management. This versatile flow meter supports multiple communication interfaces and features a user-friendly OLED display, making it ideal for professionals seeking reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement accuracy standard: ±3% of measured value + 0.3% of measuring range limit value
- Measurement accuracy enhanced: ±8% of measured value + 1% of measuring range limit value
- Repeatability: ±1.5% from measured value
- Response time: <0.3 seconds
- Temperature measurement accuracy: ±2°C, repeatability ±0.5°C
- Pressure measurement accuracy: ±1.5% of measuring range end value
- Non-linearity (pressure): ±0.5% from measuring range
- Repeatability (pressure): ±0.2% from measuring range
- Process temperature range: -20°C to +60°C
- Process pressure range: 0 bar to 16 bar
- Power supply mode: Mode A and Mode B
- Standard communication: IEEE802.3 Clause 25 (100BaseTx); 100 Mbit/sec
- MTTF: >100 years
- Dimensions (H x L x W): 120mm x 150mm x 60mm
- Weight: 0.805 kg
Key Features
- Calorimetric (flow, temperature) and piezoresistive (pressure) measurement principles
- Measures multiple parameters including mass, volume, flow rates, energy, velocity, pressure, and temperature
- Nominal width measuring tube DN 15
- Communication interface supports MQTT, OPC UA, integrated web server, and REST API
- 128 x 128 pixels adjustable rotary OLED display with 4 pushbuttons
- High measurement accuracy with standard and enhanced ranges
- Power consumption less than 5 W with Power over Ethernet support
- Enclosure rating IP65/IP67 for robust protection
- Process connection G ½ according to DIN ISO 228-1
- Wetted parts made of stainless steel, aluminum, and FKM seal for durability
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper connection, calibration, and integration with existing systems.
Applications
- Measurement of mass, volume, mass flow rate, volumetric flow rate, energy, flow velocity, pressure, and temperature in compressed air and gases such as Argon, nitrogen, and carbon dioxide
- Industrial process monitoring and control
- Energy management and efficiency optimization
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise monitoring and optimization of compressed air and gas usage, reducing energy waste
- Supports energy management through accurate flow and energy measurement
- Durable materials and long MTTF reduce replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK FTMG-ESD15AXX flow meter is available for immediate purchase, ideal for industrial and process control applications requiring precise flow and energy measurement.
