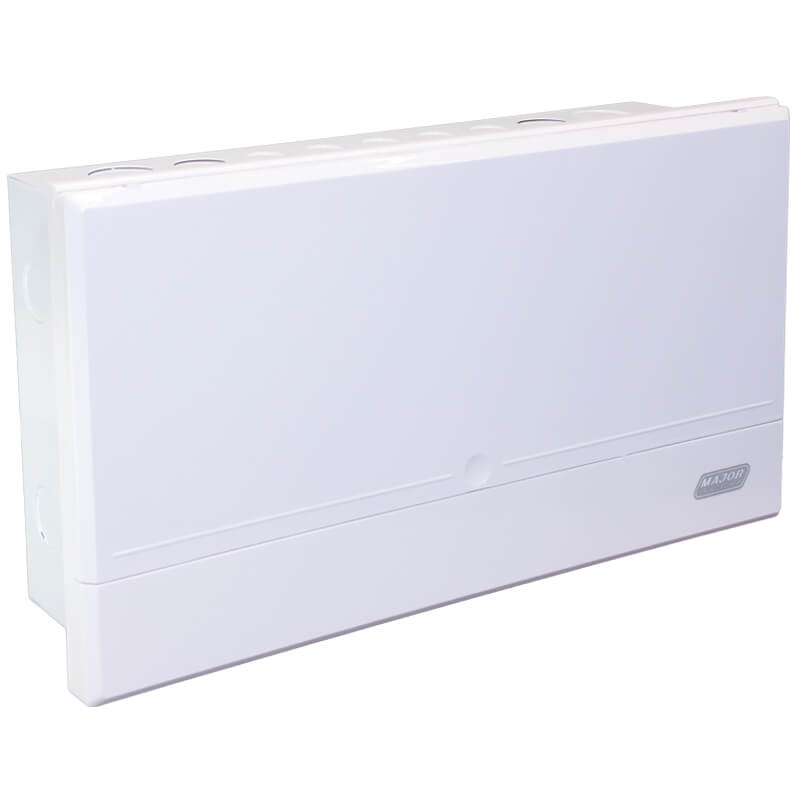

Flush Mount Switchboard 15-18 Pole Steel Tray MajorTech

BRAND: Major Tech
SKU: VBM1518FLA
$69.80 List price: $93.00
+ −
30 Days Return Electricians Unlock Trade Access
MajorTech flush mount switchboard features 15-18 pole capacity and a steel tray. Ideal for switchboard fit-out.

Alternatively Known As: MajorTech VBM1518FLA, 15-18 Pole Flush Mount Distribution Board, Flush Mount Electrical Switchboard

Technical Specifications
  • Model: VBM1518FLA
  • Capacity: 18 modules, each 18 mm wide
  • Configuration: Single row
  • Mounting Type: Flush mount
  • Mounting Support: Adjustable DIN rail
  • Protection Rating: IP20
  • Material: Powder-coated iron steel tray, ABS plastic cover and copper earth/neutral bar
  • Colour: White
  • Knock-outs: Top 5 x 20 mm, 2 x 25 mm and 2 x 32 mm; bottom 5 x 20 mm, 2 x 25 mm and 2 x 32 mm; sides 2 x 25 mm each
  • Included Accessories: Distribution board circuit labels
  • Cover Mechanism: Push-to-open adjustable cover
  • Dimensions (H x L x W): 394mm x 210mm x 97mm
  • Weight: 1.8 kg
Key Features
  • Provides space for up to 18 individual 18 mm modules
  • Durable powder-coated steel tray provides increased strength and rigidity
  • Adjustable DIN rail and cover support a level installation
  • Push-to-open cover mechanism keeps the front panel flat when closed
  • Includes copper earth and neutral bars
  • IP20 enclosure suitable for indoor switchboard fit-outs
  • Circuit identification labels included
Professional Installation Requirements
  • Installation and connection to mains electrical circuits must be completed by a licensed electrical contractor in accordance with applicable wiring rules, manufacturer instructions and local requirements.
Applications
  • Residential electrical distribution boards
  • Commercial and light-industrial switchboard fit-outs
  • Indoor circuit breaker, RCBO and accessory mounting
  • Flush-mounted electrical distribution installations
Standards & Compliance
  • AS/NZS 61439
  • AS/NZS 61000
Environmental Benefits
  • Steel components can be recovered and recycled at end of service life
  • Durable powder-coated steel construction may extend product service life and reduce replacement waste
  • Replaceable DIN-mounted protective devices can support maintenance without replacing the complete enclosure
Warranty Information

5-year limited warranty for MajorTech distribution boards and enclosures, subject to the manufacturer’s warranty terms, proof of purchase and exclusions for incorrect use, unauthorised alterations, corrosion, surges and inadequate care.

Available Now

Available through MajorTech and authorised Australian electrical distributors.
