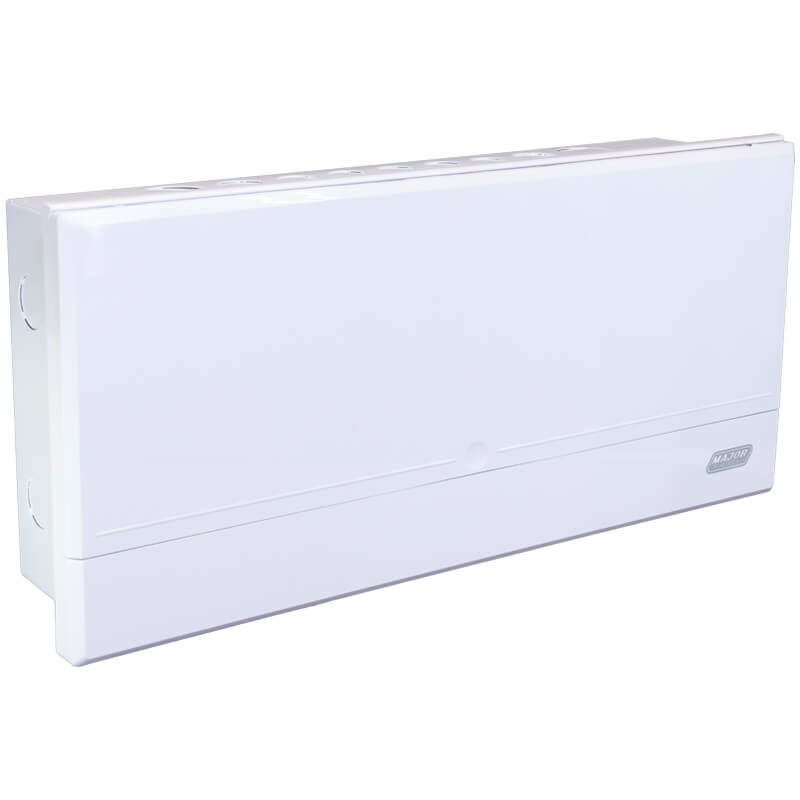

Flush Mount Switchboard 19-22 Pole Steel Tray MajorTech
MajorTech flush mount switchboard features 19-22 pole capacity and a steel tray. Ideal for switchboard fit-out.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: VBM1922FLA, 22-Module Flush Mount Distribution Board, Flush Mount DB Enclosure
Technical Specifications
- Model: VBM1922FLA
- Capacity: 21 poles; up to 22 individual 18 mm modules
- Rows: 1
- Mounting Type: Flush mount
- Mounting Support: Adjustable DIN rail
- Material: Powder-coated iron steel tray with ABS plastic cover
- Earth and Neutral Bar: Copper
- IP Rating: IP20
- Cover Mechanism: Push-to-open adjustable cover
- Knockouts: Top and bottom 5 x 20 mm, 2 x 25 mm and 2 x 32 mm; sides 2 x 25 mm
- Colour: White
- Supplied Accessories: Distribution board labels
- Dimensions (H x L x W): 466mm x 210mm x 97mm
- Weight: 2.2 kg
Key Features
- Flush-mount design for recessed installation
- Powder-coated steel tray provides strength and durability
- Accommodates up to 22 standard 18 mm DIN modules
- Adjustable DIN rail and cover support level installation
- Push-to-open cover remains flat when closed
- Copper earth and neutral bars included
- Circuit identification labels included
- IP20 enclosure for indoor, dry and protected locations
Professional Installation Requirements
- Installation, wiring and connection should be performed by a licensed electrician in accordance with AS/NZS 3000 and the applicable switchboard assembly requirements. Circuit protection devices are selected and installed separately to suit the installation.
Applications
- Residential switchboard fit-outs
- Light commercial distribution boards
- Sub-boards and circuit distribution
- Switchboard upgrades and retrofit installations
- Indoor electrical enclosure installations
Standards & Compliance
- AS/NZS 61439
- AS/NZS 61000
- Installation in accordance with AS/NZS 3000
Environmental Benefits
- Powder-coated steel tray can be recycled at end of service life
- Durable metal construction may extend product service life and reduce enclosure replacement waste
- Adjustable and modular design supports maintenance and component replacement rather than complete enclosure replacement
Warranty Information
5-year limited warranty for MajorTech distribution boards and enclosures, subject to the manufacturer's warranty terms and conditions.
Available Now
Available through MajorTech and authorised Australian electrical distributors.
