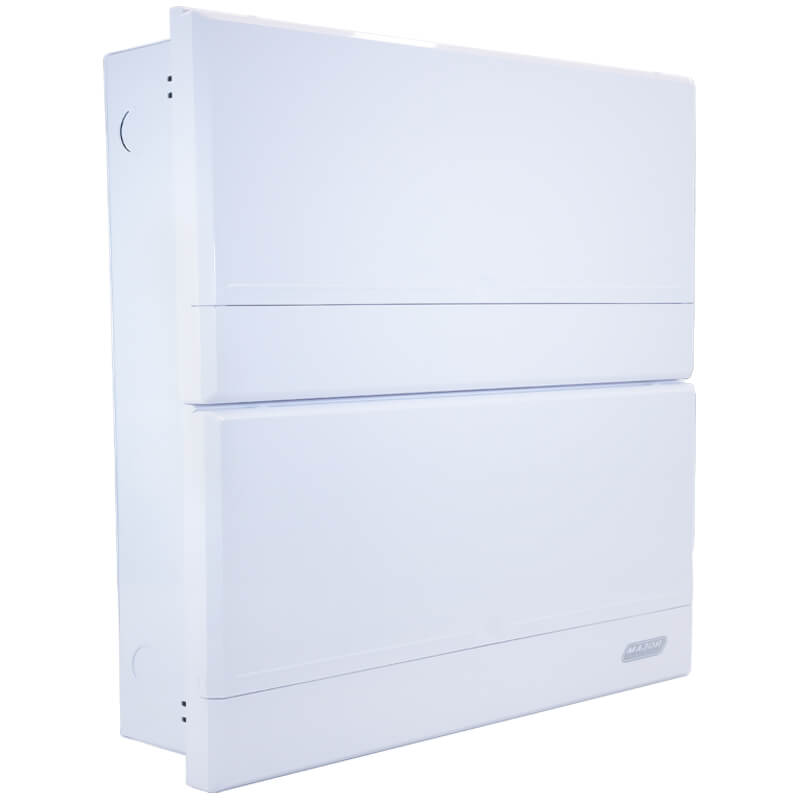

Flush Mount Switchboard 30-36 Pole Steel Tray MajorTech
MajorTech flush mount switchboard features 30-36 pole capacity and a steel tray. Ideal for switchboard fit-out.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 36-Way Flush Mount Distribution Board, 36-Module Switchboard, IP20 Electrical Distribution Board
Technical Specifications
- Model: VBM3036FLA
- Capacity: Up to 36 individual 18 mm modules
- Rows: 2
- Mounting Type: Flush mount
- Mounting Support: Adjustable DIN rail
- Ingress Protection: IP20
- Cover Material: High-quality ABS plastic
- Tray Material: Powder-coated iron/steel
- Earth and Neutral Bar: Copper
- Knockouts Top and Bottom: 3 x 20 mm, 2 x 25 mm and 4 x 32 mm
- Knockouts Left and Right: 2 x 25 mm per side
- Included Accessories: Distribution board labels
- Approvals: CE, RoHS, HF test and ISO 9001
- Dimensions (H x L x W): 392mm x 418mm x 97mm
- Weight: 4.2 kg
Key Features
- Accommodates up to 36 individual 18 mm modular devices
- Two-row configuration for compact switchboard fit-outs
- Powder-coated steel tray provides strength and durability
- Adjustable DIN rail and front cover support level installation
- Push-to-open cover mechanism maintains a flat finish when closed
- Includes copper earth and neutral bars
- Includes labels for clear circuit identification
- Suitable for indoor residential and light commercial installations
Professional Installation Requirements
- Installation, wiring and commissioning should be performed by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's instructions. The completed assembly must be verified for applicable AS/NZS 61439 requirements.
Applications
- Residential electrical switchboard fit-outs
- Light commercial distribution boards
- Indoor circuit distribution and protection
- New electrical installations
- Switchboard replacement and retrofit projects
Standards & Compliance
- AS/NZS 61439 for low-voltage switchgear and controlgear assemblies
- AS/NZS 61000 for electromagnetic compatibility requirements
Environmental Benefits
- Powder-coated steel tray is durable and recyclable at end of service life
- Extended product durability can reduce replacement frequency and material waste
- RoHS approval supports restriction of certain hazardous substances
Warranty Information
5-year limited warranty for distribution boards and enclosures, subject to MajorTech warranty terms, proof of purchase and applicable exclusions.
Available Now
Available through MajorTech and authorised Australian electrical distributors.
