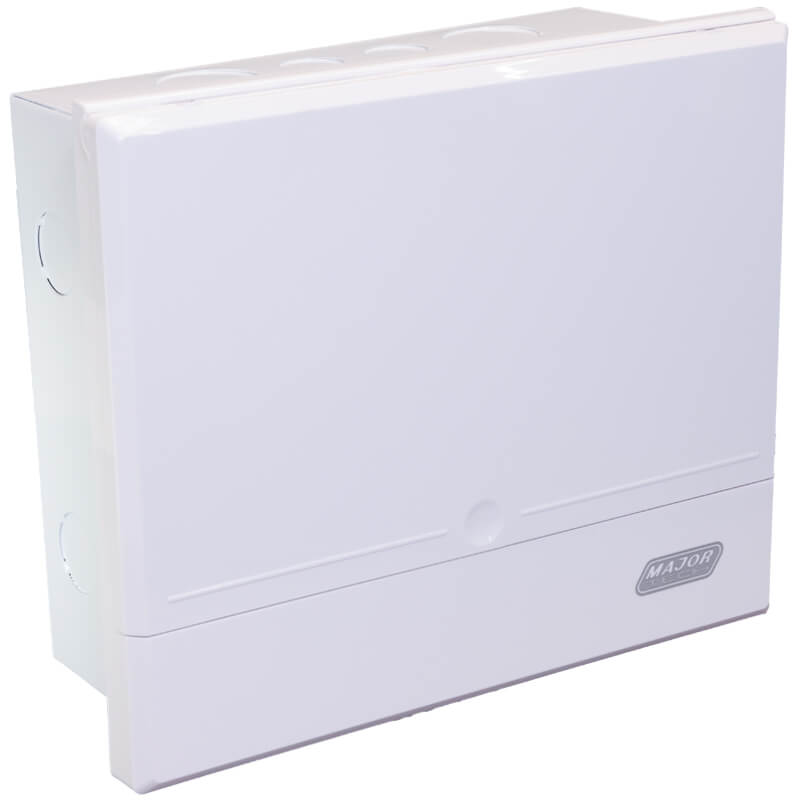

Flush Mount Switchboard 8-10 Pole Steel Tray MajorTech

BRAND: Major Tech
SKU: VBM810FLA
$45.70 List price: $61.00
+ −
30 Days Return Electricians Unlock Trade Access
MajorTech flush mount switchboard features 8-10 pole capacity and a steel tray. Ideal for switchboard fit-out.

Alternatively Known As: 10-Module Flush Mount Distribution Board, Recessed Switchboard, Flush Mount Electrical Enclosure

Technical Specifications
  • SKU: VBM810FLA
  • Capacity: 10 modules of 18 mm width
  • Rows: 1
  • Mounting Type: Flush mount
  • Mounting Support: Adjustable DIN rail
  • Ingress Protection: IP20
  • Material: High-quality ABS plastic cover with powder-coated iron tray
  • Earth and Neutral Bar: Copper
  • Knockouts: Top and bottom with 2 x 20 mm and 2 x 32 mm; sides with 2 x 25 mm
  • Cover Mechanism: Push-to-open, flat when closed
  • Included Accessories: Distribution board circuit labels
  • Standards: AS/NZS 61439 and AS/NZS 61000
  • Approvals: CE, RoHS, HF test and ISO 9001
  • Dimensions (H x L x W): 210mm x 97mm x 250mm
  • Weight: 1.285 kg
Key Features
  • Compact single-row design for residential and commercial electrical distribution
  • Accommodates up to 10 individual 18 mm modules
  • Durable powder-coated steel tray provides increased strength and rigidity
  • Adjustable DIN rail and front cover support level installation
  • Push-to-open cover remains flat when closed
  • Copper earth and neutral bars included
  • Circuit identification labels included
  • IP20-rated enclosure for indoor applications
Professional Installation Requirements
  • Installation and electrical fit-out must be completed by a licensed electrician in accordance with AS/NZS 3000, applicable local regulations and the manufacturer's instructions.
Applications
  • Residential switchboard fit-outs
  • Commercial and office electrical installations
  • Electrical distribution upgrades and retrofits
  • New-build electrical installations
  • Compact indoor DIN-rail circuit protection assemblies
Standards & Compliance
  • AS/NZS 61439
  • AS/NZS 61000
  • Installation should comply with AS/NZS 3000 Wiring Rules
Environmental Benefits
  • Powder-coated steel tray is durable and recyclable at end of service life
  • Long-lasting metal construction can reduce replacement frequency and material waste
  • RoHS approval supports restriction of certain hazardous substances
  • Suitable for organised electrical distribution that can support efficient system maintenance
Warranty Information

Limited 5-year warranty for MajorTech distribution boards and enclosures, subject to the manufacturer's warranty terms and conditions.

Available Now

Available through MajorTech and authorised Australian electrical distributors.
