Food Grade Servo Motor 400V | 63mm Frame Size | 4500 RPM Speed | by Allen-Bradley
Food Grade Servo Motor 400V | 63mm Frame Size | 4500 RPM Speed | by Allen-Bradley
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

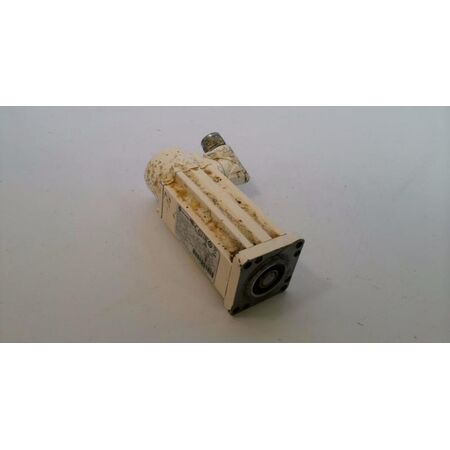

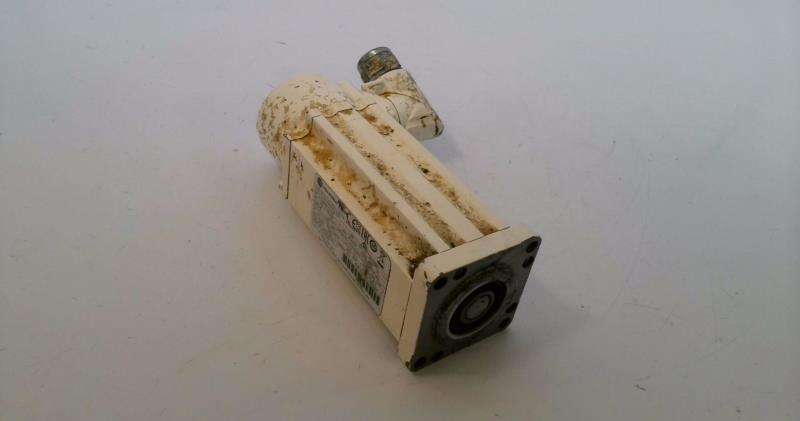

Product Name/Title: Allen-Bradley VPFB0632FPJ12AF Food Grade Servo Motor 400V
Brand: Allen-Bradley
SKU: VPFB0632FPJ12AF
Alternatively Known As: Food Grade Servo Motor, Kinetix Servo Motor, 400V Servo Motor, HIPERFACE DSL Encoder Motor
Technical Specifications
- Voltage: 400V
- Frame Size: 63 mm
- Magnet Stack: 2
- Maximum Speed: 4500 RPM
- Encoder: 18-bit absolute multi-turn digital encoder (HIPERFACE DSL)
- Connector: Single SpeedTec DIN
- Mounting: IEC metric with free mounting holes (Type FF)
- Brake: None
- Shaft: Keyed
- Dimensions (H x L x W): 120mm x 150mm x 63mm
- Weight: 2.5 kg
Key Features
- Food grade enclosure suitable for hygienic environments
- 400V operating voltage
- 63 mm frame size with 2 magnet stack
- 4500 RPM maximum speed
- 18-bit absolute multi-turn digital encoder (HIPERFACE DSL encoder)
- Shaft key for secure coupling
- Single SpeedTec DIN connector
- IEC metric mounting with free mounting holes (Type FF)
- No brake included
Professional Installation Requirements
- Installation by a qualified electrical engineer or technician is required to ensure compliance with electrical safety standards and proper integration into automation systems.
Applications
- Food and beverage processing machinery
- Pharmaceutical manufacturing equipment
- Packaging machines requiring food-grade components
- Industrial automation systems in hygienic environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Food grade enclosure reduces contamination risk, supporting safer and more sustainable food production processes
- High efficiency motor design reduces energy consumption
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley VPFB0632FPJ12AF Food Grade Servo Motor is available for immediate purchase, ideal for food processing and hygienic industrial automation applications.
