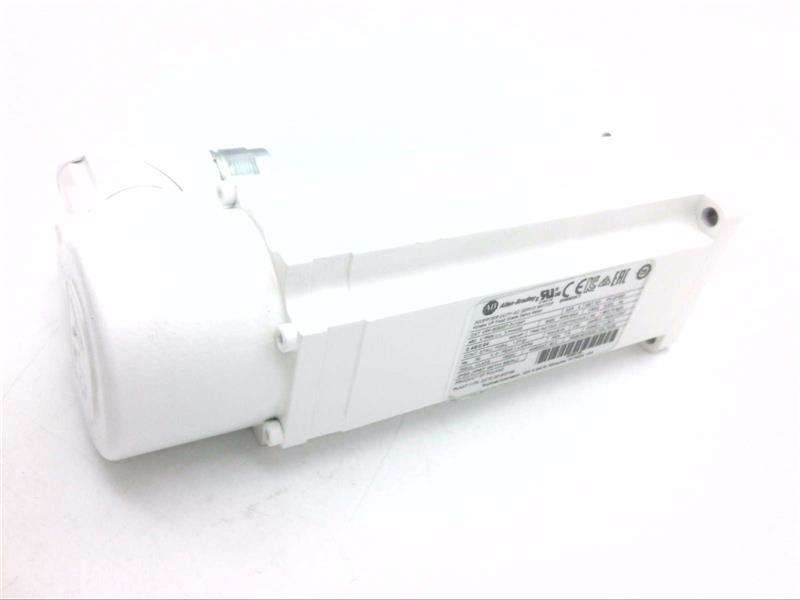

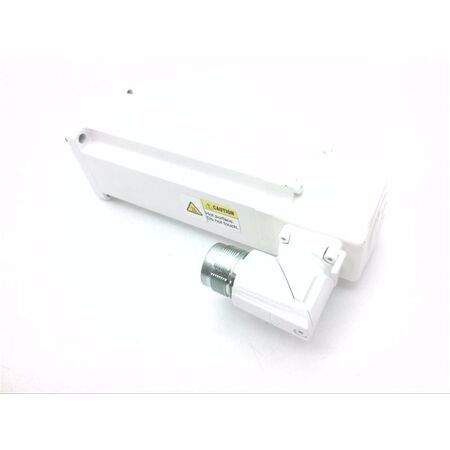

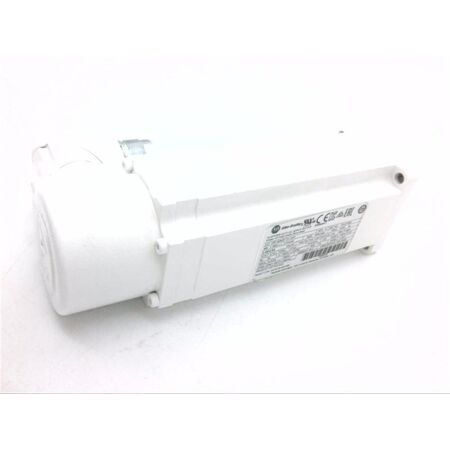

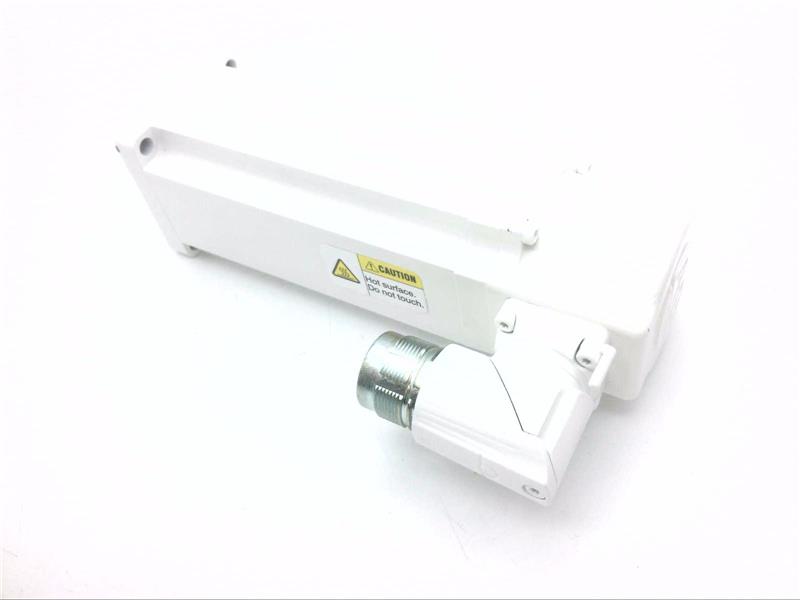

Product Name/Title: Allen-Bradley VPFB0633TPJ12AF Food Grade Servo Motor 400V
Brand: Allen-Bradley
SKU: VPFB0633TPJ12AF
Alternatively Known As: Allen-Bradley Food Grade Servo Motor, VPFB0633TPJ12AF Servo Motor, Kinetix Servo Motor 400V
Technical Specifications
- Voltage: 400V
- Frame Size: 63 mm
- Magnet Stack: 3
- Maximum Speed: 6750 RPM
- Encoder: 18-bit absolute multi-turn digital encoder (HIPERFACE DSL)
- Connector: Single SpeedTec DIN
- Mounting: IEC metric with free mounting holes (Type FF)
- Brake: None
- Shaft: Keyed
- Dimensions (H x L x W): 120mm x 150mm x 63mm
- Weight: 2.5 kg
Key Features
- Food grade enclosure suitable for hygienic environments
- 400V operating voltage
- 63 mm frame size with 3 magnet stack
- 6750 RPM maximum speed
- 18-bit absolute multi-turn digital encoder (HIPERFACE DSL encoder)
- Shaft key for secure coupling
- Single SpeedTec DIN connector
- IEC metric mounting with free mounting holes (Type FF)
- No brake included
Professional Installation Requirements
- Installation by a qualified electrical engineer or technician is required to ensure compliance with electrical and safety standards.
Applications
- Food and beverage processing machinery
- Pharmaceutical manufacturing equipment
- Packaging machines requiring food-grade components
- Industrial automation in hygienic environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Food grade enclosure reduces contamination risk, supporting hygienic manufacturing processes
- High efficiency motor design reduces energy consumption
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley VPFB0633TPJ12AF Food Grade Servo Motor is available for immediate purchase, ideal for food processing and hygienic industrial automation applications.
