Trade Discount 20%

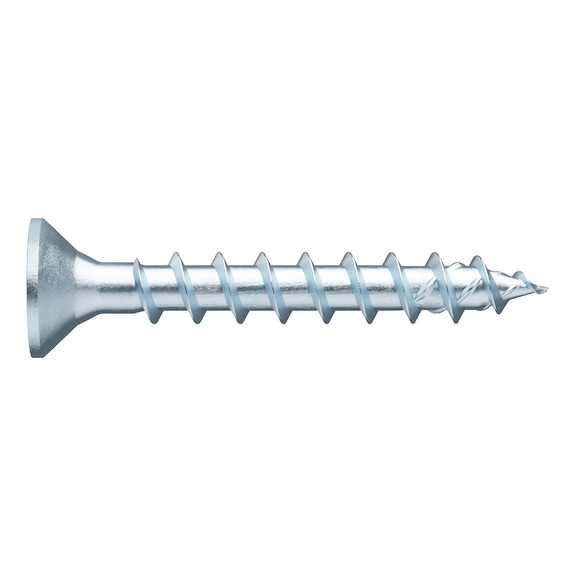

Full Thread Countersunk Head Screw | Roller-Sorted | Zinc Plated | 3.5mm Diameter | @Pack of 3000 | by Wurth
Full thread countersunk head screws are designed for universal use in wood and derived timber products. With a nominal diameter of 3.5mm and a length of 35mm, these roller-sorted screws ensure optimal power transmission and stability, making them perfect for furniture assembly and cabinet making. The zinc plating enhances durability while reducing hazardous substances, ensuring a reliable and eco-friendly fastening solution.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Full Thread Countersunk Head Screw | Roller-Sorted | Zinc Plated | 3.5mm Diameter | @Pack of 3000 | by Wurth
Brand: Wurth
SKU: 190435035
Alternatively Known As: Full Thread Wood Screw, Countersunk Head Screw, RW Drive Screw, Cabinet Connector Screw, Furniture Screw

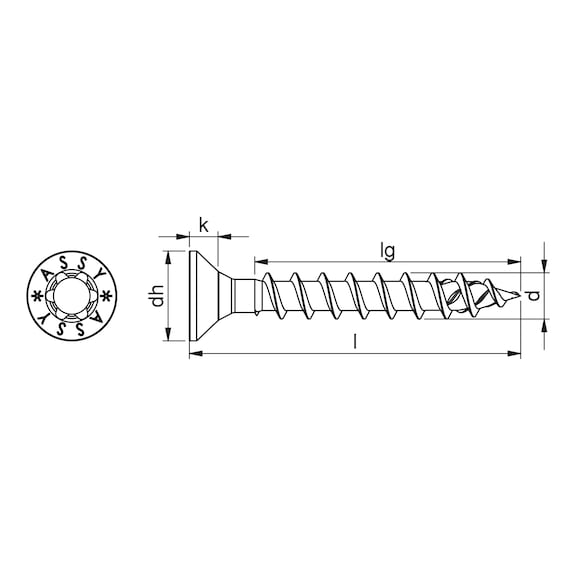

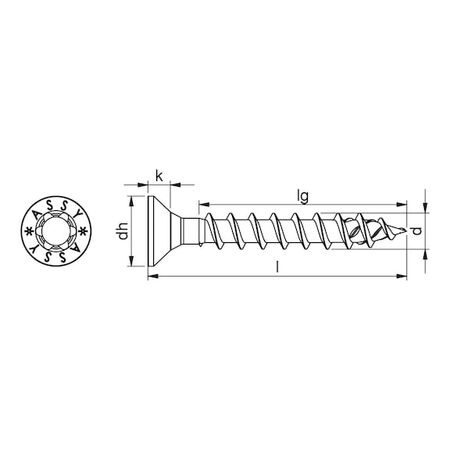

Technical Specifications
- Nominal diameter: 3.5 mm
- Length: 35 mm
- Head type: Countersunk head
- Head diameter: 7 mm
- Head height: 2.3 mm
- Internal drive: RW20
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Coarse thread
- Thread length: 30 mm
- Core diameter: 2.1 mm
- Tip shape: Tip with hilltop milling cutter
- Tip angle: 28 degrees
- Material: Hardened steel
- Surface finish: Zinc plated
- Colour: Silver
- Screw-in angle range: 0-90 degrees
- Product weight per item: 1.651 g
- Suitable materials: Wood, derived timber product, softwood, plywood, hardwood, LVL
- Area of application: Universal, furniture, cabinet, fitting
- Suitable machines: Würth BS 12-A Power
- Approval: ETA-11/0190
- Screw requiring approval: Yes
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.3mm x 35mm x 7mm
- Weight: 0.00165 kg
Key Features
- Roller-sorted full-thread screw with countersunk head

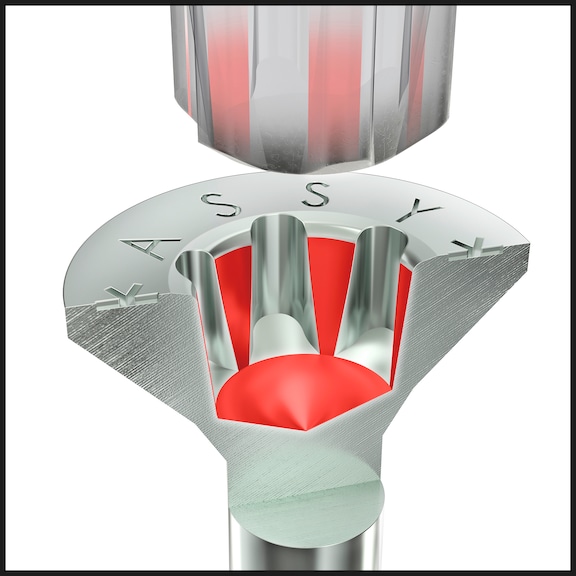

- Ideal power transmission due to RW drive with larger contact area
- More stability and precise positioning with tight-fit recess
- Compatibility with previous AW drive
- Form-fitting connection to metal fittings or wooden products
- Perfect fit of 90° head in metal countersinks
- Pulls together without head milling due to lack of milling elements below head
- Higher power transmission in hardwoods with reinforced asymmetrical thread flank geometry
- Smooth thread start for optimized recessing and biting
- Reduced splitting effect due to dome-shaped milling elements at tip
- Friction-reduced thread rotation lowers screw-in force
- Suitable for use in wood, derived timber products, softwood, plywood, hardwood, LVL
Professional Installation Requirements
- Installation by professionals or skilled users recommended to ensure correct torque and fit, especially when used in structural or furniture applications.
Applications
- Universal use in wood and derived timber products
- Furniture assembly
- Cabinet making
- Fitting connections in indoor dry or wet areas
Standards & Compliance
- Complies with AS/NZS 4785 – Wood screws for general use in timber
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Warranty details available upon request from Wurth; typically covers manufacturing defects.
Available Now
Available for immediate purchase, ideal for furniture, cabinet making, and general wood fastening applications.
