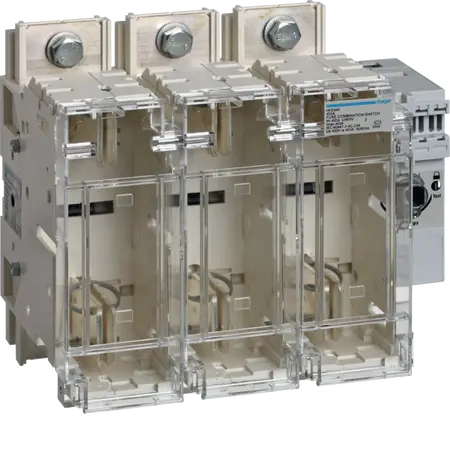

Fuse Combination Switch 3P 400 A Interlockable Cover Hager
The Hager Fuse Combination Switch 3P 400 A is designed for industrial power distribution and utility installations. It features a rated current of 400 A, 3 poles and a rated insulation voltage of 800 V. The interlockable cover enhances operational safety, with dimensions of 240mm x 300mm x 259mm and a weight of 10 kg. Refer to the technical details below for power ratings, installation requirements and compliance information.
Sign in
Please login to continue to your account.
- Rated current: 400 A
- Number of poles: 3
- Rated insulation voltage: 800 V
- Total power loss under IN: 172.20 W
- Power loss per pole at In: 57.40 W
- Rated operational power under 400 V AC AC1: 263000 W
- Ingress Protection (IP) class: IP00
- Fuse size: NH2
- Dimensions (H x L x W): 240mm x 300mm x 259mm
- Weight: 10 kg
- Rated current of 400 A with 3 poles for robust electrical control.
- Interlockable cover for enhanced safety.
- Professional installation by a qualified electrician is required for optimal safety and compliance.
- Industrial: Power distribution in commercial and industrial settings
- Utility: Suitable for use in substations and large electrical installations
- Complies with AS/NZS 3000 for electrical installation standards.
- RoHS and REACH compliant, contributing to reduced environmental impact.
1 year warranty against manufacturing defects.
The Hager Fuse Combination Switch 3P - 400 A / T2 is available now for immediate purchase. Ideal for industrial power distribution applications.
Q: What are the key electrical ratings of the Hager Fuse Combination Switch 3P 400 A?
A: It has a rated current of 400 A, 3 poles, an insulation voltage of 800 V and a rated operational power under 400 V AC of 263000 W.
Q: What safety and compliance features does this switch offer?
A: It features an interlockable cover and complies with AS/NZS 3000 for electrical installation standards.
Pair this unit with another fuse combination switch for different current-rated power distribution requirements.
A heat controller switch provides control options for electrical heating installations.
A general purpose limit switch supports switching operations in industrial equipment and machinery.
Refer to the switch amp rating guide for information about current ratings when selecting electrical switches.
