Trade Discount 22%

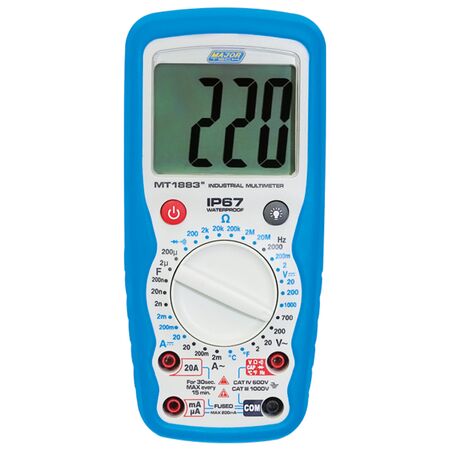

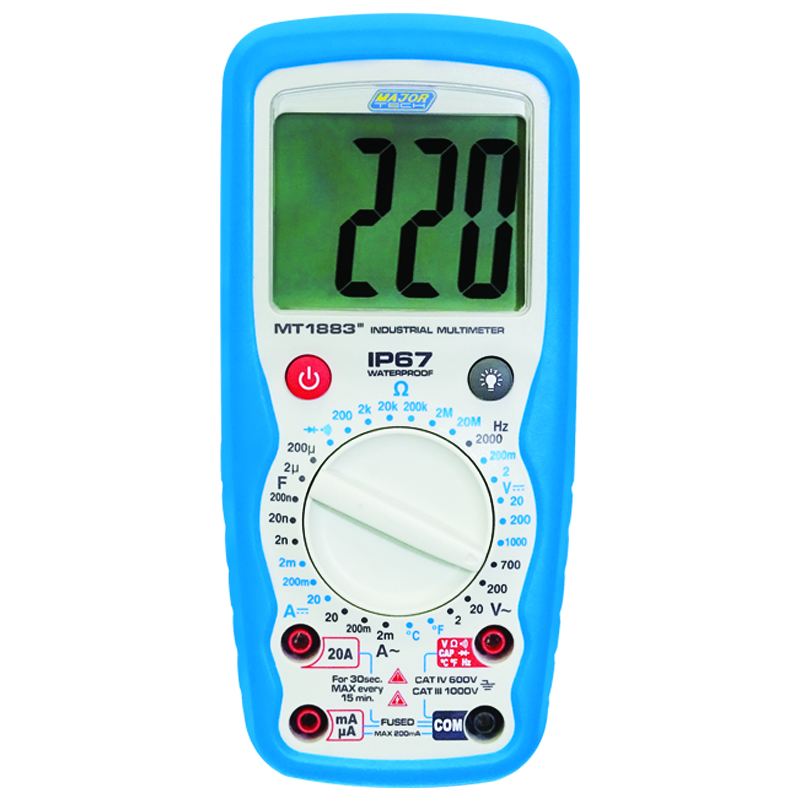

General Purpose Multimeter | AC Voltage 700V | DC Current 20A | Temperature Measurement by Majortech
General purpose multimeter with AC voltage up to 700V and DC current up to 20A—ideal for electronic technicians and electricians. Built for accurate diagnostics, it features a large backlit LCD display and measures temperature, resistance, and capacitance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: General Purpose Multimeter | AC Voltage 700V | DC Current 20A | Temperature Measurement by Majortech
Brand: Majortech
SKU: MT1883
Alternatively Known As: Digital Multimeter, DMM, Electrical Tester, Voltage Meter, Current Meter, Capacitance Meter, Frequency Meter
Technical Specifications
- AC Voltage Range: 1mV to 700V, Resolution: 0.1mV, Accuracy: ±(1.0% + 3 digits)
- DC Current Range: 0.1μA to 20A, Resolution: 10mA, Accuracy: ±(1.5% + 3 digits)
- AC Current Range: 0.1μA to 20A, Resolution: 10mA, Accuracy: ±(2.5% + 10 digits)
- Resistance Range: 0.1Ω to 20.00MΩ, Resolution: 0.1Ω, Accuracy: ±(1.2% + 2 digits)
- Frequency Range: 1Hz to 2000kHz, Resolution: 1Hz, Accuracy: ±(1.5% + 5 digits)
- Capacitance Range: 1nF to 200μF, Resolution: 1pF, Accuracy: ±(4.0% + 3 digits)
- Temperature Range: -20°C to 760°C, Resolution: 1°C, Accuracy: ±(3.0% + 5 digits)
- Dimensions (H x L x W): 150mm x 35mm x 70mm
- Weight: 0.3 kg
Key Features
- Large backlit LCD display
- Manual range 2000 count DMM
- Measures AC voltage up to 700V and DC voltage up to 1000V
- Fused AC and DC current measurement up to 20 Amps
- Temperature measurement in °C or °F
- Resistance, frequency, capacitance measurement
- Diode test function and continuity buzzer
- AC voltage and current frequency range 50Hz to 400Hz
Professional Installation Requirements
- No professional installation required; suitable for use by trained technicians and students.
Applications
- Electronic technicians and electricians
- Students studying electronics
- Solar industry electrical measurements
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps in accurate electrical diagnostics reducing energy waste
- Supports maintenance of electrical systems for improved energy efficiency
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Majortech MT1883 General Purpose Multimeter is available now for immediate purchase. Ideal for electronic technicians, electricians, and students in the solar and general electrical industries.
