General Purpose Relay 10A 2CO | 60V DC Coil | Mechanical Indicator by NHP
General purpose relay with 10A nominal current and 60V DC coil—ideal for industrial automation and control panels. Built for high electrical life, with mechanical indicator for reliable switching.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

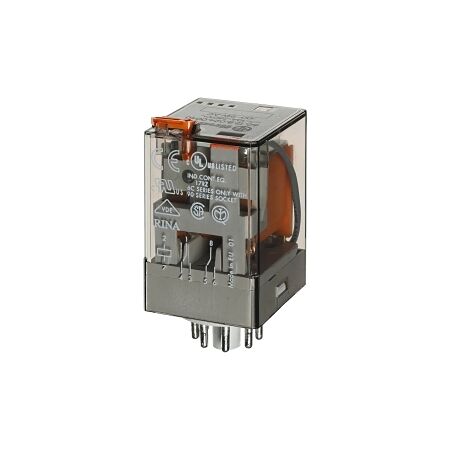

Product Name/Title: Finder 60 Series General Purpose Relay 10A 2CO 60V DC Coil with PB plus Mechanical Indicator
Brand: NHP
SKU: 601260VDCRLY
Alternatively Known As: General Purpose Relay, Switching Relay, Finder Relay
Technical Specifications
- Nominal Current: 10 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (AC): 400 V
- Rated Switching Power at AC-1: 2500 VA
- Rated Switching Power at AC-15 (230 V): 500 VA
- Breaking Capacity at DC-1 (30 V): 10 A
- Breaking Capacity at DC-1 (110 V): 0.4 A
- Control Supply Voltage (DC): 60 V
- Electrical Life: 200,000 cycles
- Mechanical Life: 50,000,000 cycles
- Operating Temperature: -40 to 70 °C
- Dimensions (H x L x W): 36.4mm x 54.2mm x 32.5mm
- Weight: 0.2 kg
Key Features
- 10A nominal current with 2 changeover contacts.
- DC coil voltage of 60V with mechanical indicator.
- High electrical life rated for 200,000 cycles.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal performance.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 60 Series General Purpose Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
Non-Returnable & Non-Cancellable
