GL6G-F2411V | Photoelectric sensors

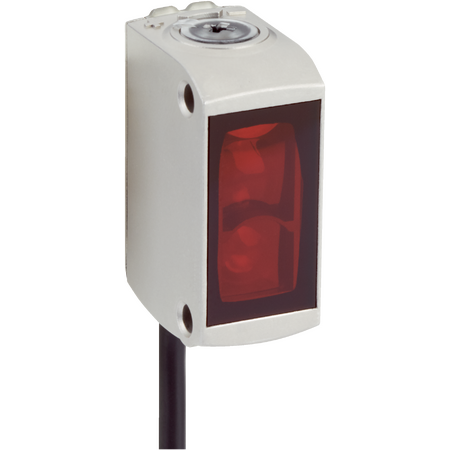

The SICK GL6G-F2411V is a robust photoelectric retro-reflective sensor designed for precise object detection including transparent objects, suitable for hygienic and washdown environments with stainless steel housing and IP67/IP69K protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GL6G-F2411V | Photoelectric sensors
Brand: SICK
SKU: 1084445
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Optical sensor, SICK GL6G sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.07 m to 5 m, max 6 m
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Light spot size: Ø 8 mm at 350 mm distance
- Adjustment: Potentiometer, 270°
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output type: PNP, light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 625 µs
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP67, IP69K
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -30 °C to +75 °C
- Housing material: Stainless steel V4A (1.4404, 316L)
- Front screen: Plastic, PMMA
- Cable: Plastic, PVC, 4-wire, 2 m length
- Dimensions (H x L x W): 44mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Sensing range from 0.07 m to 5 m, maximum 6 m
- Polarisation filter included
- Visible red light with 650 nm wavelength and Ø 8 mm light spot size at 350 mm
- Potentiometer adjustment with 270° rotation
- Stainless steel V4A (1.4404, 316L) metal housing for durability
- IP67 and IP69K rated for protection against dust and water
- Cable connection, 4-wire, 2 m length
- Fast response time under 625 µs and switching frequency up to 1000 Hz
- Complementary switching output with PNP light/dark switching mode
- Special feature for detecting transparent objects
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Hygienic and washdown zones
- Detecting transparent objects
- Industrial automation and object detection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient LED light source minimizes power consumption
- High IP rating ensures long-term reliability in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GL6G-F2411V Photoelectric Retro-Reflective Sensor is available now for immediate purchase. Ideal for industrial automation, hygienic zones, and transparent object detection.
