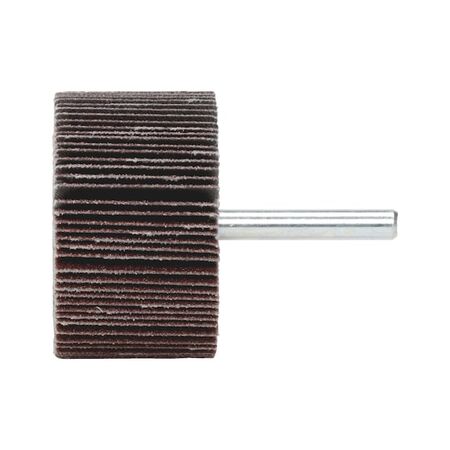

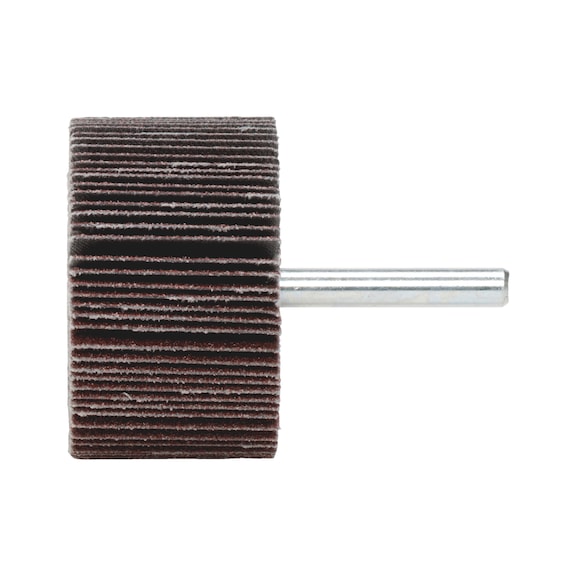

Grinding Disc Aluminium Oxide | 30mm Diameter | 80 Grit | High Speed | by Wurth
The Grinding Disc Aluminium Oxide is designed for precision grinding in confined spaces, featuring a 30mm diameter and 80 grit for high material removal. Ideal for processing a variety of materials including C-steel, stainless steel, and non-ferrous metals, this disc operates at a recommended speed of 12000 rpm, ensuring efficient performance in applications like mould-making and pipeline construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Grinding Disc Aluminium Oxide | 30mm Diameter | 80 Grit | High Speed | by Wurth
Brand: Wurth
SKU: 672010318
Alternatively Known As: Grinding Disc, Abrasive Disc, Aluminium Oxide Grinding Wheel, Precision Grinding Wheel
Technical Specifications
- Diameter x width x shaft diameter: 30 x 15 x 6 mm
- Grid size: 80
- Material of abrasive medium: Aluminium oxide
- Material to be processed: C-steel, Grey cast iron, Forged steel, Steel bands, Cr-Ni and other stainless steels, Non-ferrous metal, Deep-drawn steel, Cast metal, Malleable cast iron, Injection-moulded zinc, Stainless steel
- Recommended rotation speed: 12000 rpm
- Max. rotation speed: 25400 rpm
- Shank diameter: 6 mm
- Width: 15 mm
- Diameter: 30 mm
- Dimensions (H x L x W): 6mm x 30mm x 15mm
- Weight: 0.1 kg
Key Features
- Gentle working with high material removal
- Suitable for a wide range of materials including steels, non-ferrous metals, plastics, and wood
- Ideal for precision grinding in confined spaces
- High recommended rotation speed of 12000 rpm with max speed of 25400 rpm
Professional Installation Requirements
- Use by trained personnel with appropriate safety equipment is recommended to ensure safe and effective operation.
Applications
- Grinding in confined spaces such as mould-making
- Container and apparatus engineering
- Pipeline construction
- Machining alloyed and unalloyed steel, malleable iron, structural steel, tool steel
- Grinding of soft non-ferrous metals, plastics, and wood
- Precision grinding on radii in tool and mould making
- Machining small and hard-to-reach surfaces in instrument and container construction
- Grinding turbine blades in motor construction and repairs
- Grinding edges and surfaces, dressing, smoothing, deburring, and machining weld seams
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable abrasive material reduces frequency of replacement
- Efficient grinding reduces energy consumption during machining
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Grinding Disc 30x15x6mm is available for immediate purchase, ideal for precision grinding applications in confined spaces across various industries.
