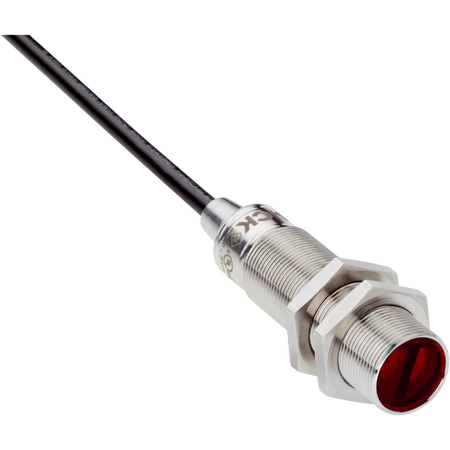

GRL18-P1131V | Photoelectric sensors
The SICK GRL18-P1131V is a robust photoelectric retro-reflective sensor designed for precise object detection in industrial and hygienic environments, featuring stainless steel housing and high ingress protection ratings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GRL18-P1131V | Photoelectric sensors
Brand: SICK
SKU: 1085825
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Industrial object sensor, SICK GRL18 sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 500 µs
- Switching frequency: 1,000 Hz
- Cable: 4-wire, 2 m PVC, 0.14 mm² conductor cross section
- Protection class: III
- Enclosure rating: IP67, IP68, IP69K
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -30 °C to +75 °C
- Housing material: Stainless steel V4A (1.4404, 316L)
- Optics material: Plastic PMMA
- Polarisation filter included
- Dimensions (H x L x W): 18mm x 73.5mm x 18mm
- Weight: 0.175 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED at 650 nm wavelength
- Axial optical axis with sensing range from 0.06 m to 6 m
- Housing made of stainless steel V4A (1.4404, 316L) for durability
- IP67, IP68, and IP69K rated for protection against dust and water
- LED indicators for power and object detection status
- Fast response time under 500 µs and switching frequency of 1,000 Hz
- Cable connection with 4-wire, 2 m PVC cable
- Suitable for harsh environments including hygienic and washdown zones
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones
- Machine safety and process control
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient LED light source minimizes power consumption
- High ingress protection extends product lifespan in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GRL18-P1131V Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
