GRL18S-F3036S02 | Photoelectric sensors

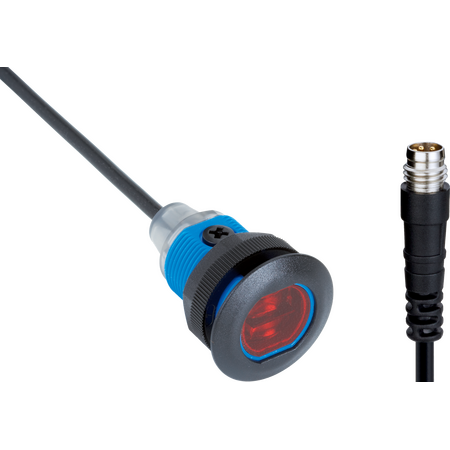

The SICK GRL18S-F3036S02 is a photoelectric retro-reflective sensor designed for precise object detection in industrial automation, featuring a dual lens system, visible red light, and robust IP67 rated housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GRL18S-F3036S02 | Photoelectric sensors
Brand: SICK
SKU: 1067943
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, M18 photoelectric sensor, SICK sensor GRL18S, Industrial object sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.06 m to 6 m
- Light source: PinPoint LED, 650 nm wavelength
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, dark switching
- Output current max: ≤ 100 mA
- Response time: < 500 µs
- Switching frequency: 1,000 Hz
- Connection: Cable with M8 male connector, 4-pin, 300 mm
- Housing material: Plastic ABS, optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 18mm x 38mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED light source
- Sensing range from 0.06 m to 6 m
- Axial optical axis with cylindrical M18 x 1 housing
- LED indicators for power and object detection status
- Dark switching mode with PNP output
- High switching frequency of 1,000 Hz and response time under 500 µs
- Cable with M8 male connector, 4-pin, 300 mm length
- Robust plastic ABS housing with IP67 enclosure rating
- Operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and security systems
- Packaging and assembly line monitoring
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 rated housing minimizes waste through extended product life
- Complies with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK GRL18S-F3036S02 Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
