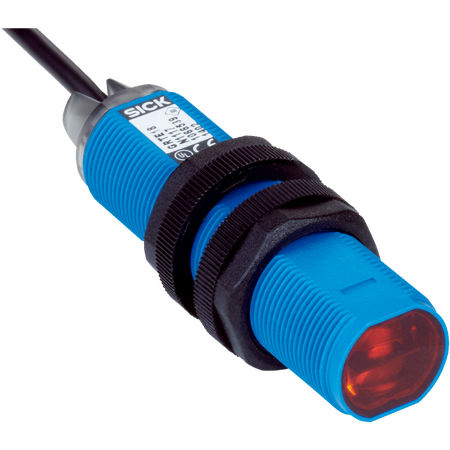

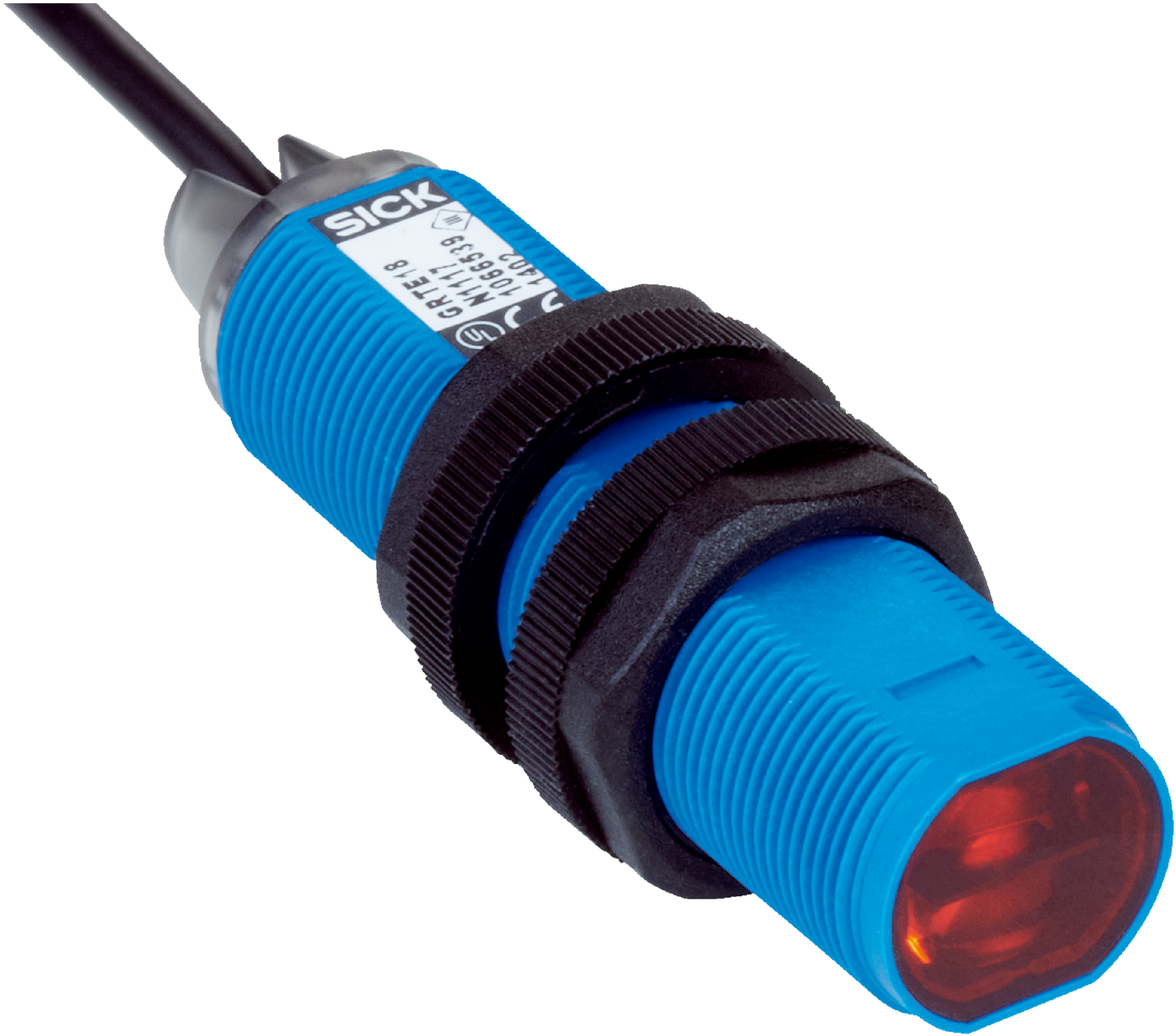

GRSE18-N1127 | Photoelectric sensors
The SICK GRSE18-N1127 is a robust through-beam photoelectric sensor featuring an infrared LED light source, designed for precise object detection in industrial automation with a sensing range up to 15 meters and IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GRSE18-N1127 | Photoelectric sensors
Brand: SICK
SKU: 1068331
Alternatively Known As: Through-beam photoelectric sensor, Infrared photoelectric sensor, M18 photoelectric sensor, Industrial object sensor
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 15 m
- Type of light: Infrared light, wavelength 850 nm
- Light source: LED
- Light spot size at 10 m: Ø 420 mm
- Adjustment: Potentiometer
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN, complementary
- Switching mode: Light/dark switching
- Response time: < 500 µs
- Switching frequency: 1000 Hz
- Connection type: 4-wire cable, 2 m length
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 18mm x 72mm x 18mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with infrared LED light source
- Sensing range up to 15 meters
- Cylindrical M18 x 1 threaded housing design
- Potentiometer adjustment for sensitivity
- LED indicators for power and object detection status
- IP67 rated enclosure for dust and water protection
- Fast response time under 500 microseconds
- Switching frequency up to 1000 Hz
- Complementary NPN output with light/dark switching mode
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and monitoring in manufacturing processes
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and conditions.
Available Now
The SICK GRSE18-N1127 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
