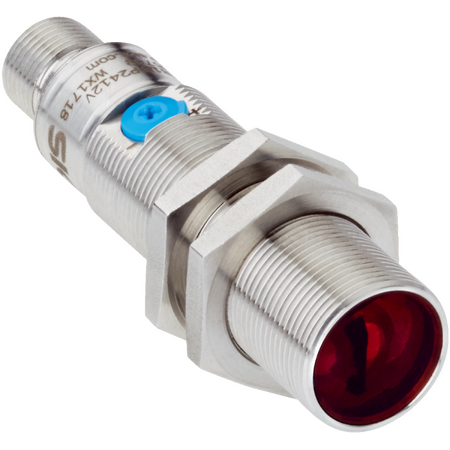

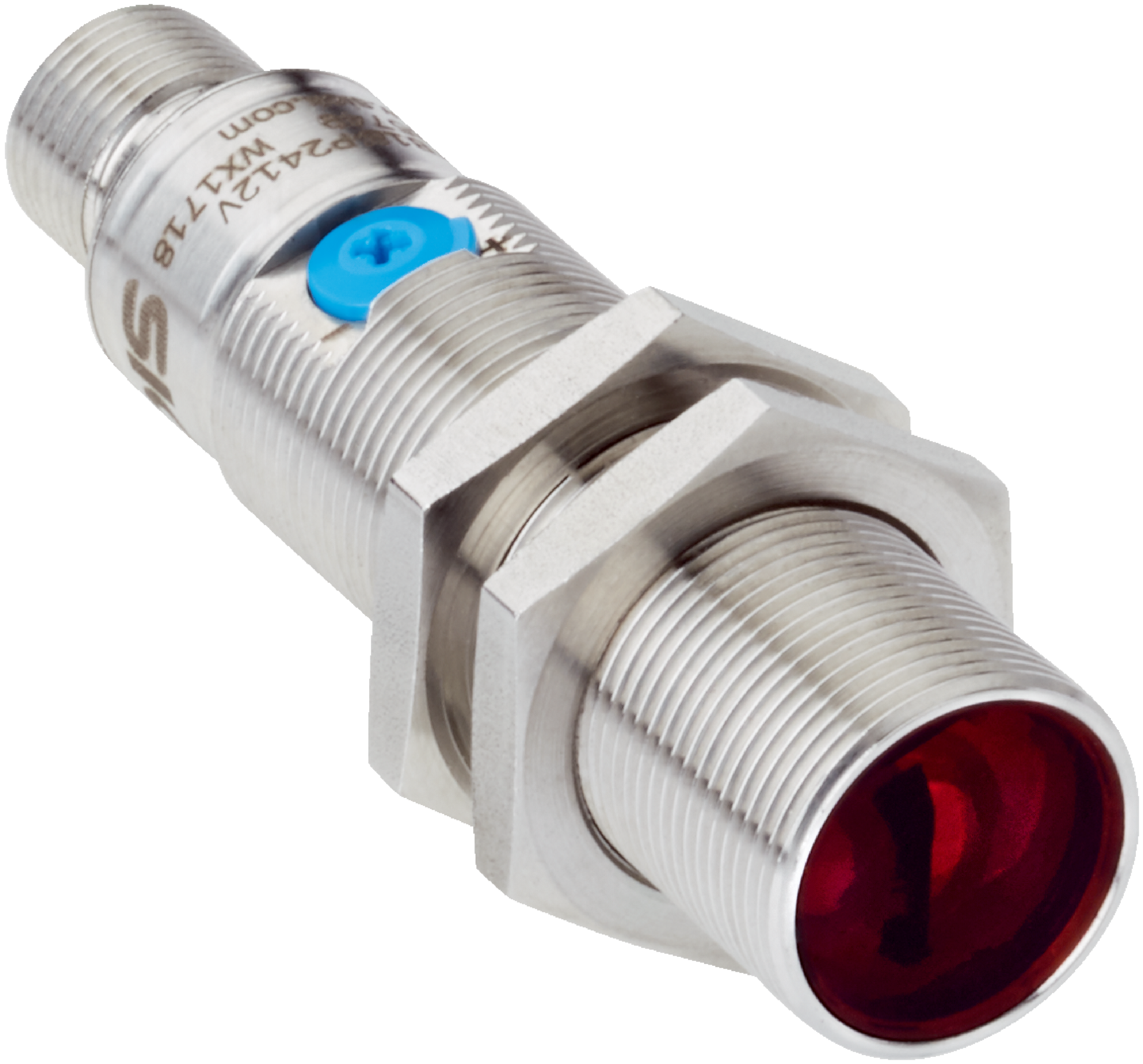

GRTB18-P2412V | Photoelectric sensors
The SICK GRTB18-P2412V is a durable photoelectric proximity sensor featuring background suppression, suitable for hygienic and washdown zones with robust stainless steel housing and high IP protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GRTB18-P2412V | Photoelectric sensors
Brand: SICK
SKU: 1085749
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, Red light sensor, PinPoint LED sensor, Industrial photo sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 500 µs
- Switching frequency: 1,000 Hz
- Optical axis: Axial
- Light wavelength: 650 nm
- Light spot size: Ø 7 mm at 100 mm distance
- Housing material: Stainless steel V4A (1.4404, 316L)
- Optics material: Plastic, PMMA
- Enclosure rating: IP67, IP68, IP69K
- Connection type: Male M12, 4-pin connector
- Ambient operating temperature: –25 °C to +55 °C
- Ambient storage temperature: –30 °C to +75 °C
- Circuit protection: Types A, B, D
- Electromagnetic compatibility: EN 60947-5-2
- Dimensions (H x L x W): 18mm x 73.5mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light with PinPoint LED light source
- Sensing range from 20 mm to 150 mm
- Potentiometer adjustment with 270° rotation
- LED indicators for power and object detection
- Robust stainless steel V4A housing (1.4404, 316L)
- High protection rating: IP67, IP68, IP69K
- Fast switching frequency of 1,000 Hz and response time under 500 µs
- Male M12 4-pin connector for easy connection
- Suitable for hygienic and washdown environments
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones
- Machine safety and process control
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient LED light source minimizes power consumption
- High ingress protection extends product lifespan in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GRTB18-P2412V Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
