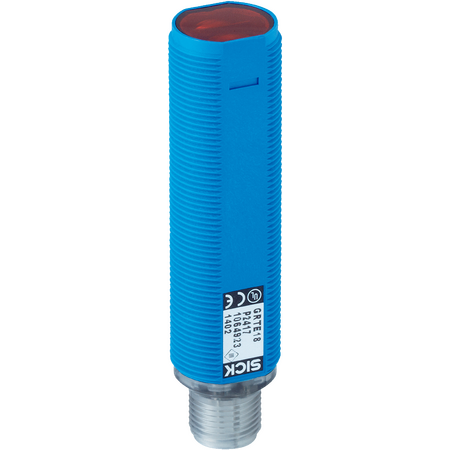

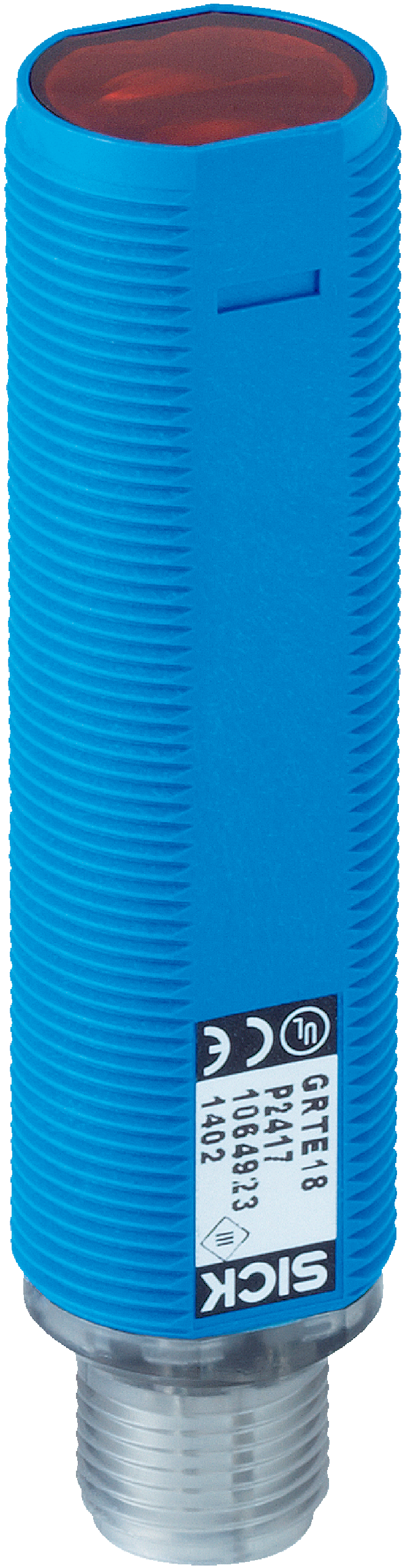

GRTB18-P2417 | Photoelectric sensors
The SICK GRTB18-P2417 is a robust photoelectric proximity sensor featuring background suppression, suitable for precise object detection in industrial automation with IP67 protection and fast response time.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GRTB18-P2417 | Photoelectric sensors
Brand: SICK
SKU: 1076116
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, M18 photoelectric sensor, Industrial object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP complementary
- Output current max: ≤ 100 mA
- Switching mode: Light/dark switching
- Signal voltage PNP HIGH/LOW: VS - (≤ 3 V) / approx. 0 V
- Response time: < 500 µs
- Switching frequency: 1,000 Hz
- Connection type: Male connector M12, 4-pin
- Circuit protection: A, B, D types
- Protection class: III
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- EMC: EN 60947-5-2
- UL File No.: E348498
- Dimensions (H x L x W): 18mm x 74mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light with PinPoint LED light source
- Sensing range from 20 mm to 150 mm, max 300 mm
- Cylindrical housing design with M18 x 1 thread diameter
- Axial optical axis with Ø 7 mm light spot at 100 mm distance
- Potentiometer adjustment for sensitivity
- LED indicators: green for power, yellow for object detection
- High switching frequency of 1,000 Hz and response time under 500 µs
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25 °C to +55 °C
- EMC compliant to EN 60947-5-2 standard
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Safety and presence detection in machinery
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GRTB18-P2417 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
